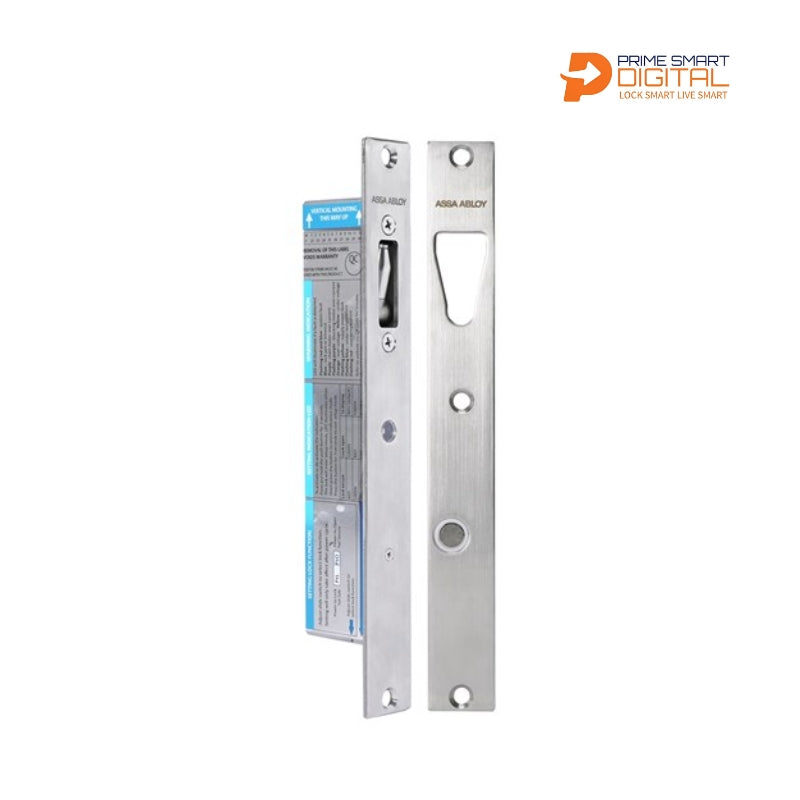

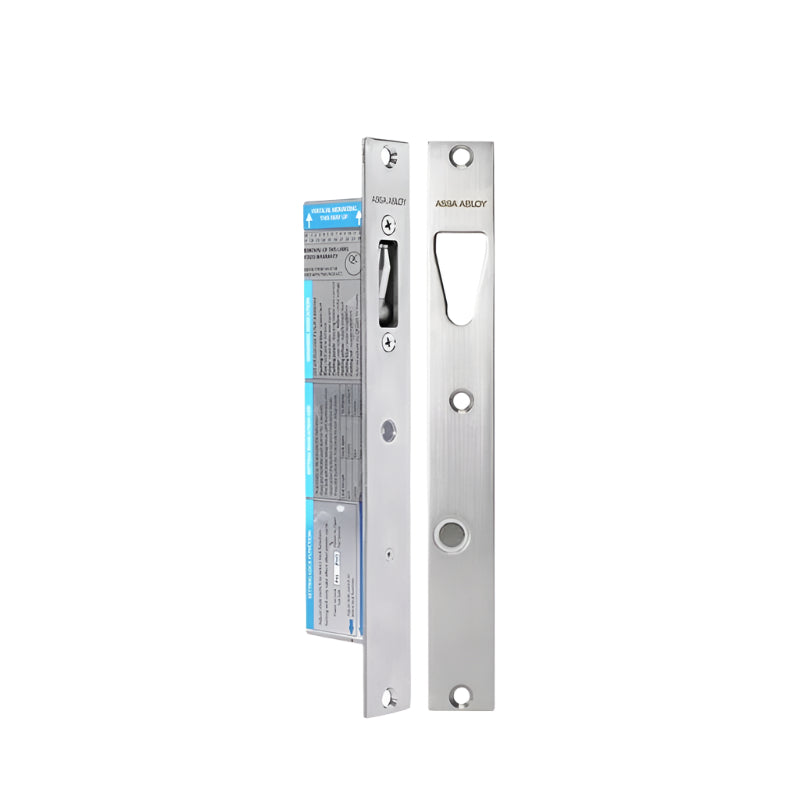

The unique and popular Lockwood/Trimec ES8000 V-Lock has been completely redesigned and engineered to produce the new ASSA ABLOY ES8100 V-Lock.

Maintaining the original ES8000 footprint so it's simply retrofit.

  • Unlocks under a Pre-Load of up to 100kg in 3-wire mode, 15kg in 2-wire mode.
  • Locks under a Pre-Load of 20kg (12W) and 35kg (24W).
  • 1000kg Holding force.
  • IP53 rated for external door applications.
  • Door position & lock status monitoring.
  • On-Board visual lock status indication and diagnostics LED.
  • Easy, one-step, Fail Safe (PTL) and Fail Secure (PTO) field selection.
  • Optional surface / glass mount Kit.
  • May be mounted vertically or horizontally (must not be mounted in the floor).
  • Allows for door misalignment of up to 12 mm total (+/-6 mm).
  • Operating voltage: 11.4 - 26VDC.
  • Durability tested to 500,000 cycles (120N unlocking, 50N locking).
  • Voltage: 11.4 - 26VDC.
  • Current: Peak Current: 1000mA, Idle Current: 35mA @12VDC with LED activated.
  • Unlocking Pre-Load: Side Load rated: Motorised unlocking - 100kg max at the bolt.
  • Strength: Maximum 1000kg.
  • Monitoring: Lock Status Monitoring: NO/NC, Door Position Monitoring: NC.
  • Unlocking Time: 1 Second under Preload.
  • Locking Time: 3 Seconds.
  • Environment: Weather resistant construction to IP53.
  • Operating Temperature: -10 to +60 ° C.
  • Endurance: 500,000 operations (120N Unlocking, 50N Locking).

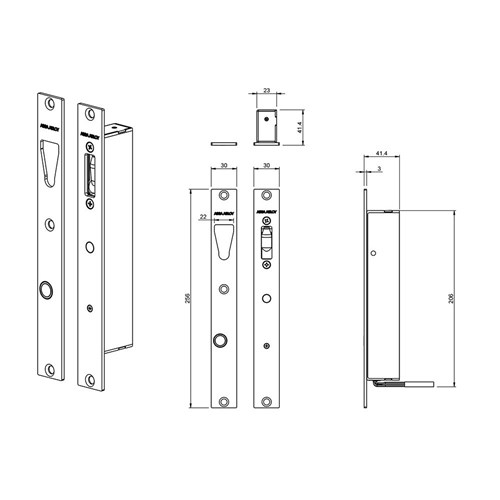

  • Dimensions: Body: 210L x 24W x 42D (mm),
  • Faceplate: 256L x 30W (mm),
  • Strike Plate: 256L x 30W (mm).
  • Construction: Stainless steel lock body, face plate & strike plate.



Technical Specifications

  • Brand    ABLOY
  • Current    1000 mA
  • Field Selectable Fail Safe/Fail Secure    Yes
  • Finish    Stainless Steel
  • Holding Strength in kg    1000
  • Integrated Door Position Reed Switch Monitoring    Yes
  • IP Rating    IP53
  • Operates Under Pre-load up to    35 kg
  • Working Voltage    11.4 Vdc to 26 Vdc
  • Door Status Sensor    Yes
  • LED Indicator    Yes
