Dahua Hybrid WiFi 2-Wire Intercom Kit – Silver, 1-Button, 7" Monitor

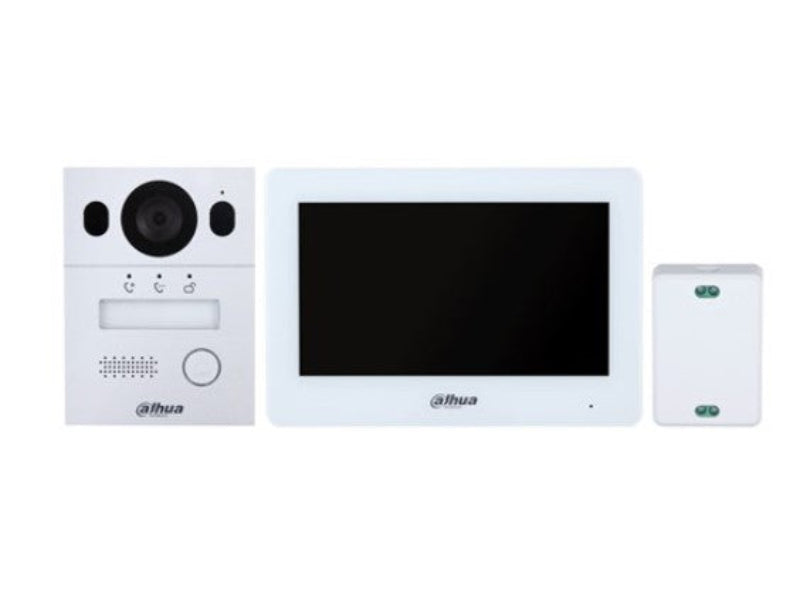

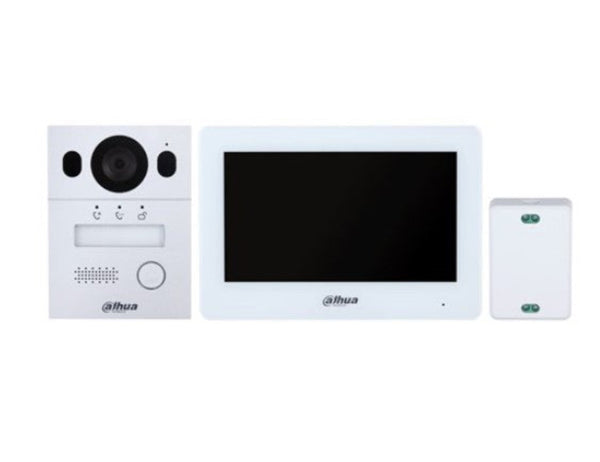

The Dahua Hybrid WiFi 2-Wire Video 1 Button Silver Residential Intercom Kit (model DHI-KTX01(S)) is a comprehensive video intercom solution designed for residential applications. This kit integrates a surface-mount door station, a 7-inch touchscreen indoor monitor, and a 2-wire controller, offering a seamless and user-friendly experience.

Video Intercom Kit

2-wire Wi-Fi Hybrid Indoor Monitor:

• 7" TFT capacitive touch screen.
• Offers video intercom that communicates with VTOs through half-duplex, and the app through full-duplex.
• Supports recording videos and capturing snapshots. (SD card is required).
• 6-channel alarm input and 1-channel alarm output.
• The app can be used to receive calls and alarm notifications.
• Connects to HDCVI camera.

2-wire Hybrid Villa Door Station:

• Aluminium alloy front panel.
• Auto IR illumination.
• Video messages can be left for unanswered calls. (SD card is required for VTH).
• Features nameplate and DWDR.
• Supports local lock and second lock.
• Offers anti-tampering alarm.
• IP65 and IK07 rated.

Technical Specifications

• Brand    DAHUA
• Camera Resolution    2 Megapixel
• Finish    White & Silver
• IP Rating    IP65, IK07
• Diagonal Screen Size in inches    7
• Screen Resolution    1024 x 600
• Touch Screen    Yes
• RS-485 Interface    Yes
