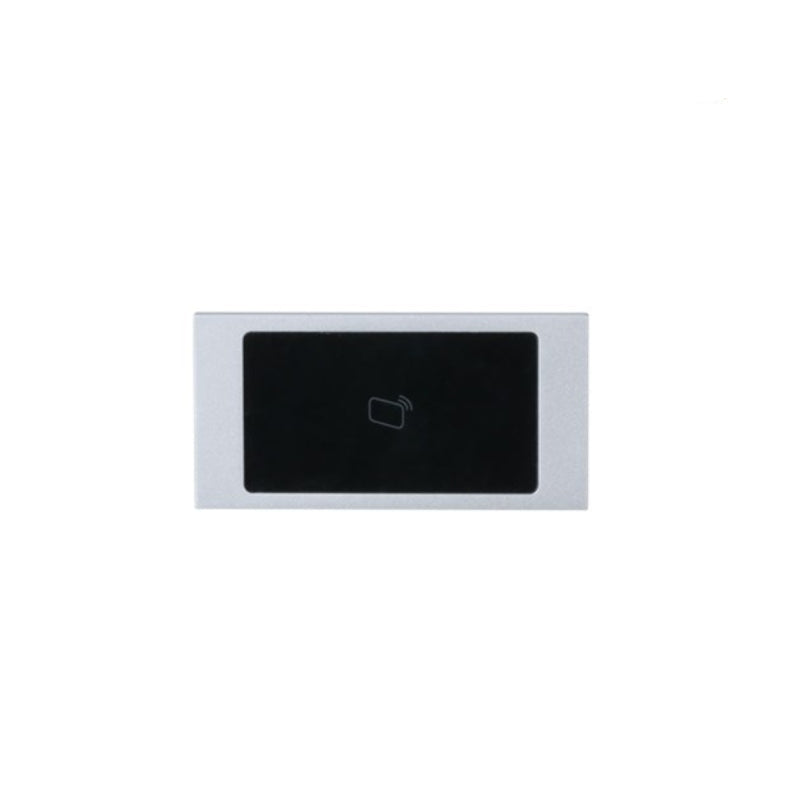

Rectangular black object with a silver border on a white background
Rectangular black object with a silver border on a white background

Dahua Intercom Modular Outdoor Station - Card swiping module, IP65, IK07

SKU: VTO4202FMR
Barcode: 9312341384874
$52.52
$52.52

Prices include GST, Shipping added at checkout- $11.90
Free pick up available at store

Description

The Dahua DHI‑VTO4202F‑MR is a compact card reader module designed for integration with the VTO4202F‑P modular outdoor intercom system. It enables secure, contactless access via MIFARE cards and features robust weather and vandal protection.

System

  • Main Processor    Embedded MCU processor

Capacity

  • Cards    10000

Port

  • Power Output Port    5V DC (Provide power for other modules)

Regular

  • Power Supply Mode    5V DC (Provided with power by other modules)
  • Colour    Silver
  • Dimensions    100mm×49.90mm×28.50mm
  • Protection Grade    IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
  • Operating Temperature    -20°C to 60°C
  • Operating Humidity    10%RH–90%RH
  • Power Consumption    1W

Technical Specifications

  • Brand    DAHUA
  • Finish    Silver
  • IP Rating    IP65, IK07
  • Card Format    Mifare
