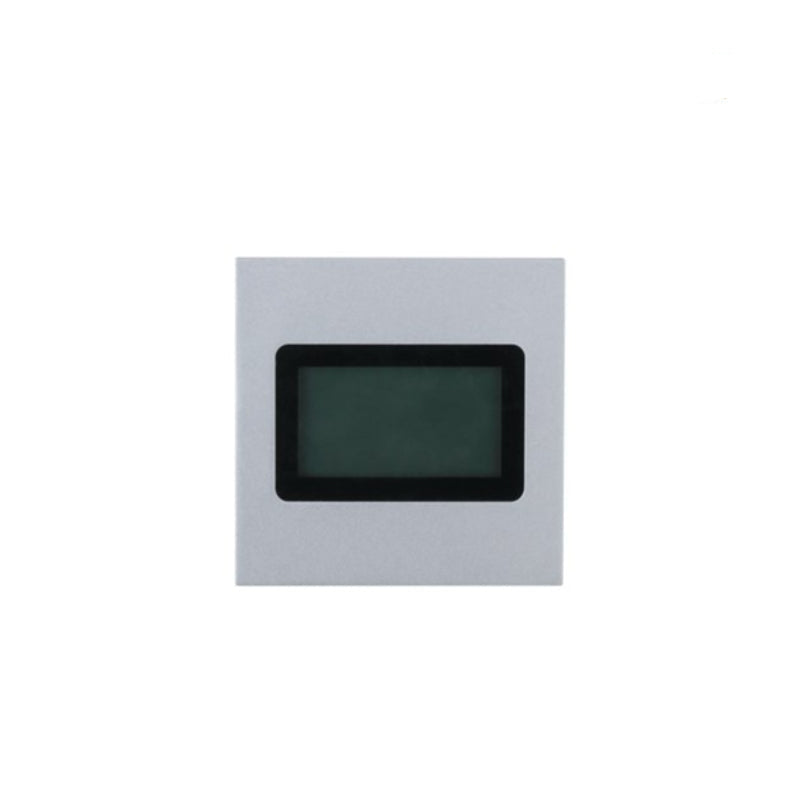

Dahua Intercom Modular Outdoor Station - Display module, IP65, IK07

This modular display unit is part of the Dahua VTO4202F IP intercom series. It features a 3.0″ LCD capable of showing visitor or room number information and status updates. Built from anodized aluminum with IP65 weatherproofing and IK07 vandal resistance, it integrates seamlessly into both surface and flush mounting setups.

Intercom Modular Outdoor Station - Display Module

System

• Display    3.0 inch STN display

Port

• Power Output Port    5V DC (Provide power for other modules)

Regular

• Power Supply Mode    5V DC (Provided with power by other modules)
• Colour    Silver
• Dimensions    100mm×100mm ×28.5mm
• Protection Grade    IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
• Operating Temperature    -20°C to 60°C
• Operating Humidity    10%RH–90%RH
• Power Consumption    1W

Technical Specifications

• Brand    DAHUA
• Finish    Silver
• IP Rating    IP65, IK07
• Diagonal Screen Size in inches    3
