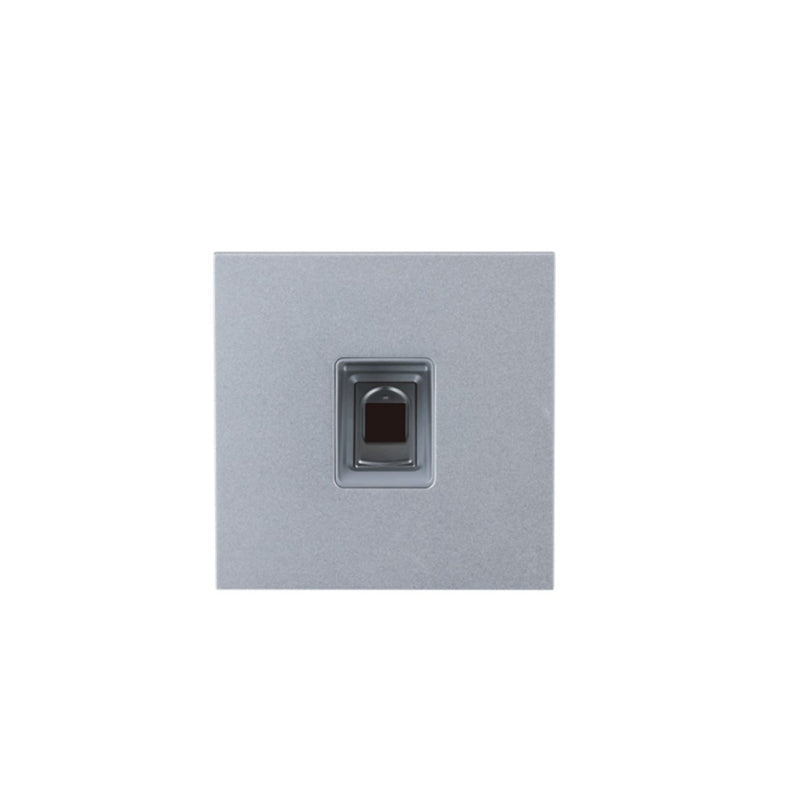

Dahua Intercom Modular Outdoor Station - Fingerprint module, IP65, IK07

Integrate biometric security into Dahua’s VTO4202F modular outdoor intercom system with this fingerprint module. Designed with a silver anodized aluminum panel, it supports up to 3,000 fingerprints and delivers both reliability and durability in outdoor applications.

Intercom Modular Outdoor Station - Fingerprint Module

System

• Main Processor    Embedded MCU processor
• Fingerprints    3000

Port

• Power Output Port    5V DC (Provide power for other modules)

Regular

• Power Supply Mode    5V DC (Provided with power by other modules)
• Colour    Silver
• Dimensions    100mm×100mm ×38.5mm
• Protection Grade    IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
• Operating Temperature    -20°C to 60°C
• Operating Humidity    10%RH–90%RH
• Power Consumption    1W

Technical Specifications

• Brand    DAHUA
• Finish    Silver
• IP Rating    IP65, IK07
• Biometric Fingerprint Access    Yes
