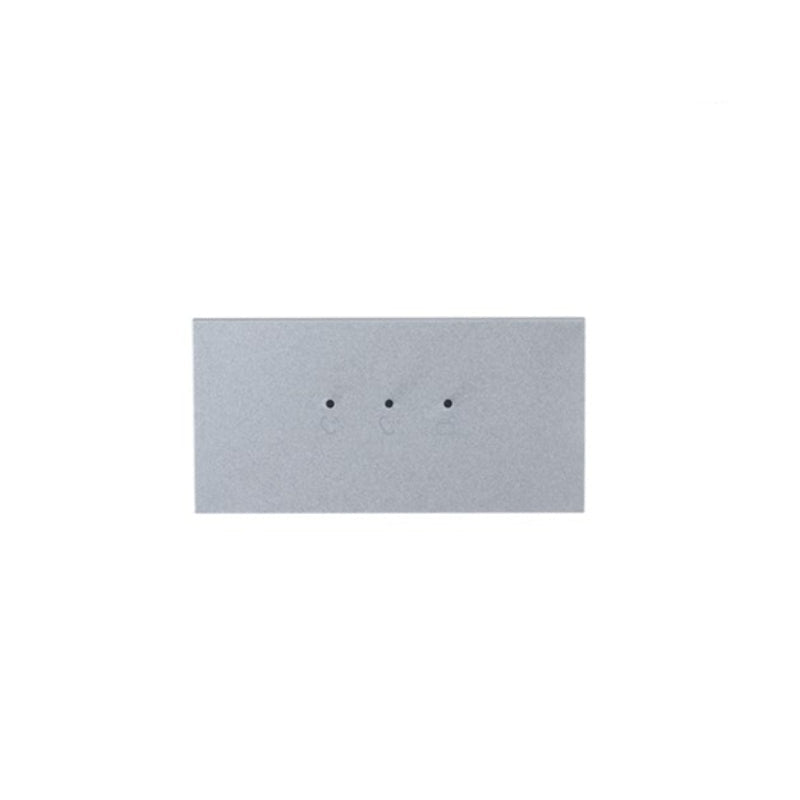

Dahua Intercom Modular Outdoor Station - Indicator module, IP65, IK07

Upgrade Dahua's modular intercom system with this compact indicator light module. Designed for seamless integration into VTO4202F-X series outdoor stations, it visually displays system status via three LED indicators. With robust outdoor protection ratings and streamlined power design, this module offers both form and function.

Intercom Modular Outdoor Station - Indicator Module

System

• Main Processor    Embedded MCU processor
• Indicator Lights    3

Port

• Power Output Port    5V DC (Provide power for other modules)
• Regular Power Supply Mode    5V DC (Provided with power by other modules)
• Colour    Silver
• Dimensions    100mm×49.90mm ×28.5mm
• Protection Grade    IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
• Operating Temperature    -20°C to 60°C
• Operating Humidity    10%RH–90%RH
• Power Consumption    1W

Technical Specifications

• Brand    DAHUA
• Finish    Silver
• IP Rating    IP65, IK07
