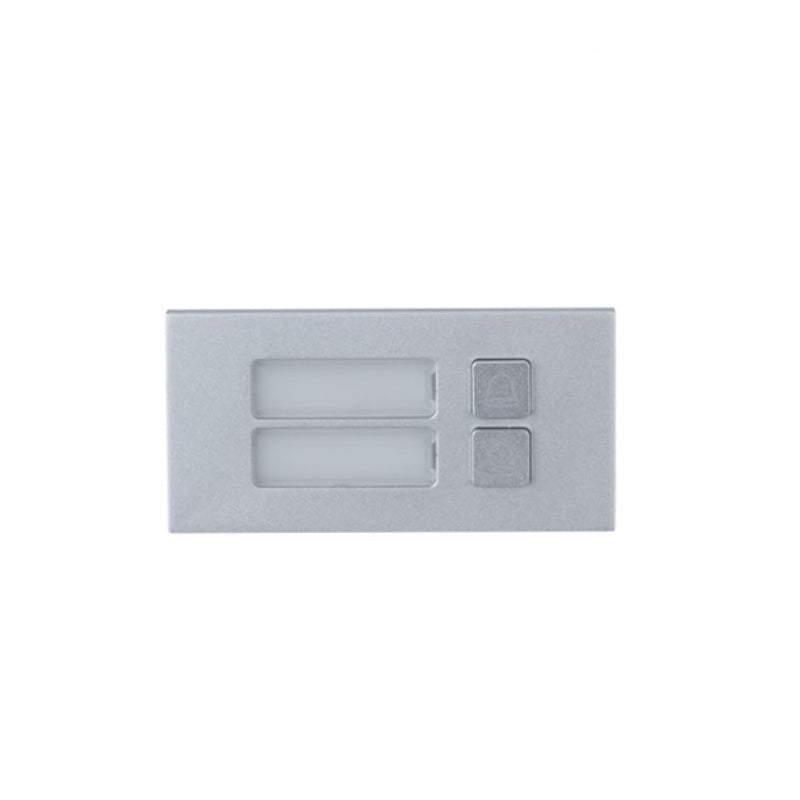

Dahua Intercom Modular Outdoor Station - Two-button module, IP65, IK07

Enhance your Dahua modular outdoor intercom system with this durable two-button module. Designed for easy integration, it features IP65-rated weather resistance and IK07 impact protection, ensuring reliable performance in harsh outdoor environments. The module allows visitors to easily select between two call options, ideal for residential or commercial applications requiring multiple entry points.

Intercom Modular Outdoor Station - Two-button module

System

• Main Processor    Embedded MCU processor
• Button Type    Mechanical button

Port

• Power Output Port    5V DC (Provide power for other modules)

Regular

• Power Supply Mode    5V DC (Provided with power by other modules)
• Colour    Silver
• Dimensions    100mm×49.90mm ×31mm
• Protection Grade    IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
• Operating Temperature    -20°C to 60°C
• Operating Humidity    10%RH–90%RH
• Power Consumption    1W

Technical Specifications

• Brand    DAHUA
• Finish    Silver
• IP Rating    IP65, IK07
• Number Of Buttons (REMOTEBUTT)    2
