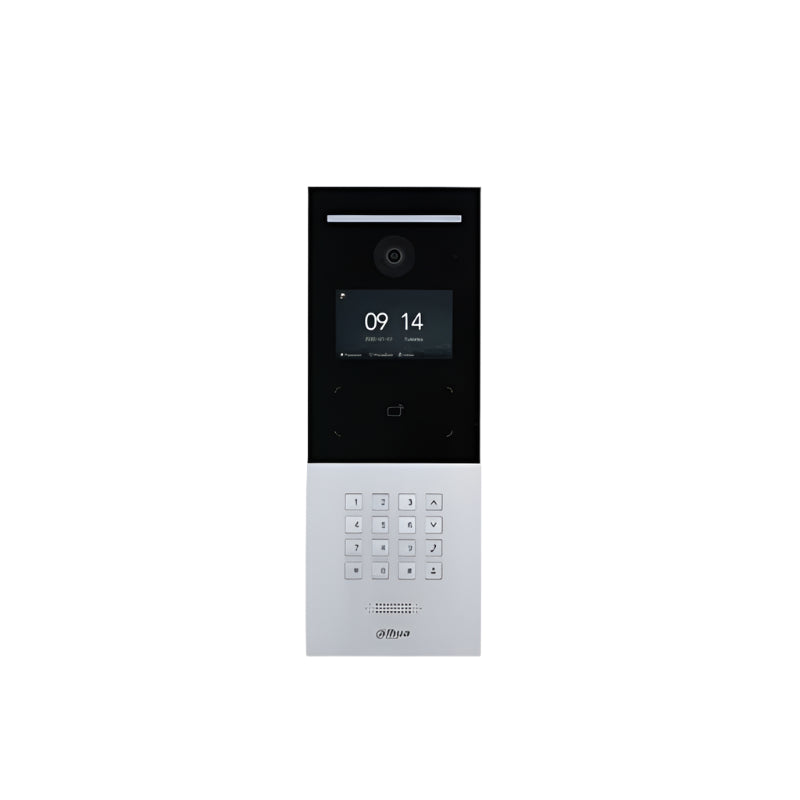

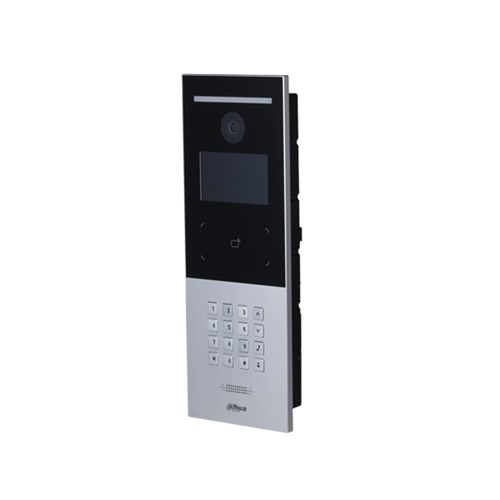

Dahua IP Video Silver Apartment Intercom Door Station with 4.3inch LCD Screen and 2MP Camera, IP65 - DHI-VTO6521F-S2

Apartment Door Station

• 4.3 inch IPS display; screen resolution 800×480
• 2MP CMOS; true WDR
• Aluminum anode surface; metal button; IP65, IK07
• Operating temperature: -30°C to 60°C
• Auto light illumination reduces light pollution
• Multiple unlock modes: Password unlock, IC card unlock, and remote unlock
• Support 20,000 users and 10,000 cards
• Support full duplex; management platform, and voice call through APP
• Support SIP server, and can manage 200 indoor monitors at most
• Support duress alarm, tamper alarm, and door sensor timeout alarm

System

• Main Processor Embedded processor
• Operating System Embedded Linux operating system
• Button Type Mechanical
• Network Protocol SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP
• ROM 4GB
• RAM 1GB

Basic

• Display Screen 4.3 inch IPS screen
• Resolution 800×480
• Camera 1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator
• Fngle of View Horizontal: 113.79°; vertical: 61.5°; diagonal: 134.45°
• Focal Length 2.8mm
• Aperture F2.0
• WDR 120dB
• Noise Reduction 3D noise reduction
• Video Compression H.264
• Video Resolution Main Stream: 720p, sub stream: 1080P
• Frame Rate Main Stream (720P@25fps), sub stream (1080P@25fps) Main Stream (720P@30fps), sub stream (1080P@30fps)
• Video Bit Rate 256Kbps–2048Kbps
• Light Compensation Auto white light
• Audio Compression G.711u
• Audio Input 1
• Audio Output Built-in speaker
• Audio Mode Full duplex communication
• Audio Enhancement Echo suppression and cancellation/digital noise reduction
• Audio Bit Rate 16KHz, 16Bit

Function

• Communication Mode Full digital
• Unlock Mode Card/remote/password unlock
• Card Type IC card
• Motion Detection Video motion detection
• Auto Snapshot Yes
• Leave Videos or Text Messages Yes
• Web Configuration Yes

Performance

• Card Reading Distance 1cm–5cm
• Issue Card Locally Yes
• Casing Material Aluminum alloy

Capacity

• Card 10, 000

Port

• RS-485 1
• Wiegand 1 input port, 1 output port
• Electric Lock 1
• Alarm Input 2
• Alarm Output 2
• Power Output 1 12V/100mA
• Exit Button 1
• Door Status Detection 1
• Lock Control 1, normally open by default
• Network 1 RJ-45 10Mbps/100Mbps self-adaptive

Alarm

• Tamper Yes

General

• Password Unlock Mode User password/public password/duress password
• Color Silver
• Power Supply Mode DC 12V2A
• Power Adapter Optional
• Installation Surface mount and Flush mount
• Certification CE/FCC
• Accessory Optional
• Product Dimensions 389 mm×145 mm×41.9 mm (15.31"×5.71"×1.65")
• Protection Grade IP65 (silicone sealant is needed, see the quick start guide)
• Operating Temperature -30°C to 60°C (-22°F to 140°F )
• Operating Humidity 10%RH–90%RH (non-condensing)
• Operating Altitude 86kPa–106kPa
• Power Consumption ≤5W (standby), ≤18W (working)
• Net Weight 1.4 kg (3.09 lb)
• Gross Weight 1.68 kg (3.70 lb)

Technical Specifications

• Brand    DAHUA
• Camera Resolution    2 Megapixel
• Finish    Black/Silver
• IP Rating    IP65, IK07
• Card Format    Mifare
• RJ45 Ethernet Interface    Yes
• Can Be Powered via PoE    Yes
• Diagonal Screen Size in inches    4.3
• Screen Resolution    800 x 480
• RS-485 Interface    Yes
