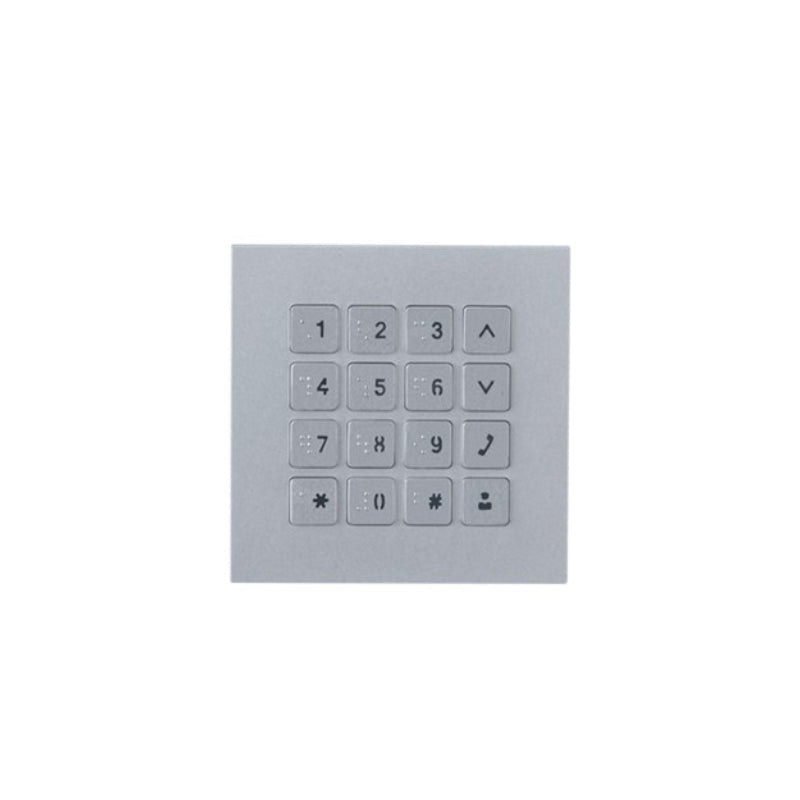

Dahua Modular Outdoor Station key pad

Enhance entry access control with the Dahua keypad module designed for the VTO4202F‑P modular intercom system. Featuring a mechanical metal backlit keyboard with Braille buttons and durable aluminum construction, it is ideal for secure residential or commercial installations.

Modular Outdoor Station with key pad

System

• Main Processor    Embedded MCU processor

Button

• Button Type    Metal backlight keyboard (0–9, *, #)

Port

• Power Output Port    5V DC (Provide power for other modules)

Regular

• Power Supply Mode    5V DC (Provided with power by other modules)
• Colour    Silver
• Dimensions    100mm×100mm×31mm
• Protection Grade    IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
• Operating Temperature    -20°C to 60°C
• Operating Humidity    10%RH–90%RH
• Power Consumption    1W

Technical Specifications

• Brand    DAHUA
• Finish    Silver
• IP Rating    IP65, IK07
