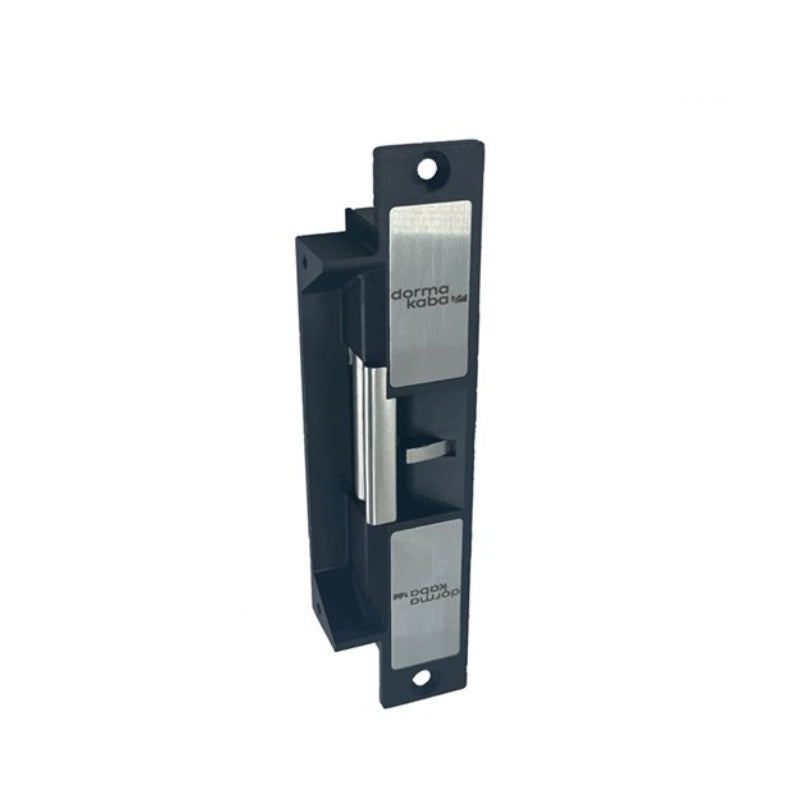

DORMAKABA KES900Z Electric Strike – 12/24VDC, Zinc Alloy

The DORMAKABA KES900Z Electric Strike is a cost-effective solution for non fire-rated doors. Built from zinc alloy, it supports up to 35kg of pre-load pressure and offers dual voltage (12VDC/24VDC) operation. Ideal for residential and aluminium doors affected by pressure from seals, alignment issues, or air conditioning.

• Operates under pre-load pressure up to 35kg

• Dual voltage: 12VDC or 24VDC

• Field-selectable fail-safe or fail-secure operation

• Latch and lock status monitoring

• Static holding force: 680kg

• Suits latch throws up to 18mm

• Includes mounting tabs for metal frames

• Pre-drilled for optional extension lips

• Rated for 500,000 cycles

• Non fire-rated zinc alloy construction

Specifications:
Brand: DORMAKABA
Model: KES900Z
Material: Zinc Alloy
Voltage: 12/24VDC
Current: 600mA @ 12VDC, 300mA @ 24VDC
Holding Strength: 680kg
Monitoring: Yes
Fire Rated: No
Locking Mode: Fail Safe / Fail Secure (reversible)
