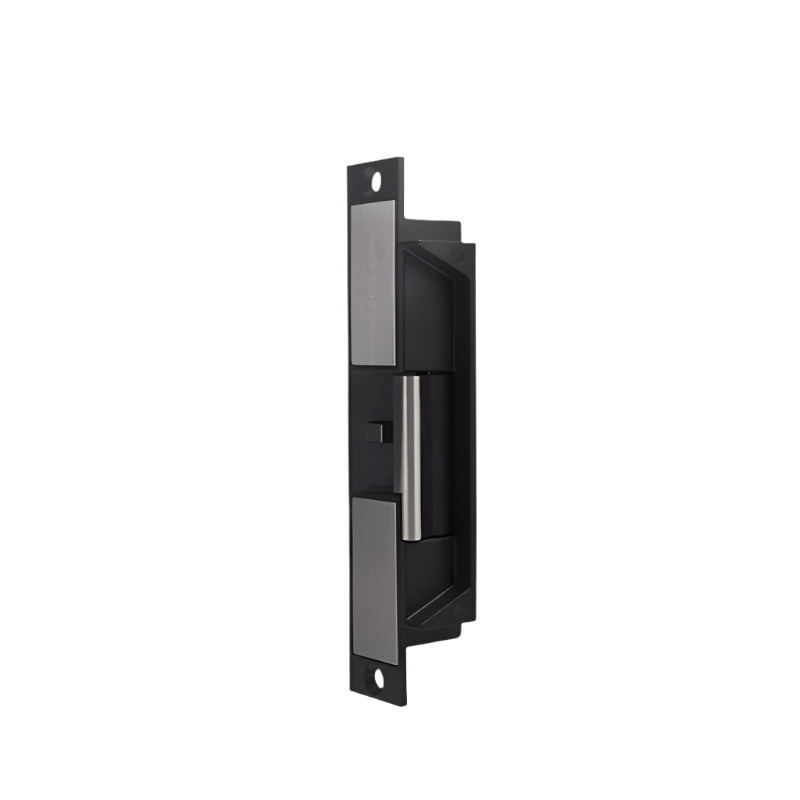

FSH FES90M-P Electric Strike, Fully Monitored with 35kg Pre-Load, 4 Hour Fire Rated - FES90M-P

The patented FES90M-P EcoStrike offers advanced motorised locking with up to 35 kg pre-load tolerance, making it ideal for high-security doors. Designed as a “green locking solution,” it features minimal energy use in sleep mode and exceptional durability, tested to 1.5 million cycles.

Equipped with a standard 10 mm strike lip (with a 5 mm extension included), the FES90M-P prevents injury and damage while providing reliable fire-rated security up to 4 hours (AS/NZS 1905 & BS 476 standards). It supports multi-voltage operation (10–30 V DC), field-selectable fail safe/fail secure modes, and power to lock or open.

Additional features include stainless steel construction, monitored door latch and lock status, weather resistance, and a holding strength exceeding 1300 kg. Installation is simplified with pre-drilled holes, a tab mounting kit, and a self-adhesive template.

Key Features:

• Motorised locking with 35 kg pre-load tolerance

• Fire rated up to 4 hours

• Energy-efficient sleep mode (15mA at 12V DC)

• Multi-voltage: 10–30 V DC

• Fail safe/fail secure selectable on site

• Monitored door latch and lock status

• Weather resistant stainless steel build

• Holding strength over 1300 kg

• Suitable for 18 mm latch with 3 mm door gap

• Includes installation template and mounting kit
