FSH HL1260 Hook Lock, Fully Monitored - HL1260

FSH HL1260 Hook Lock, Fully Monitored - HL1260

SKU: HL1260
Barcode: 9312341335896
$981.45
$981.45
10 customers are viewing this product

Express Shipping Option Available at Checkout

Description

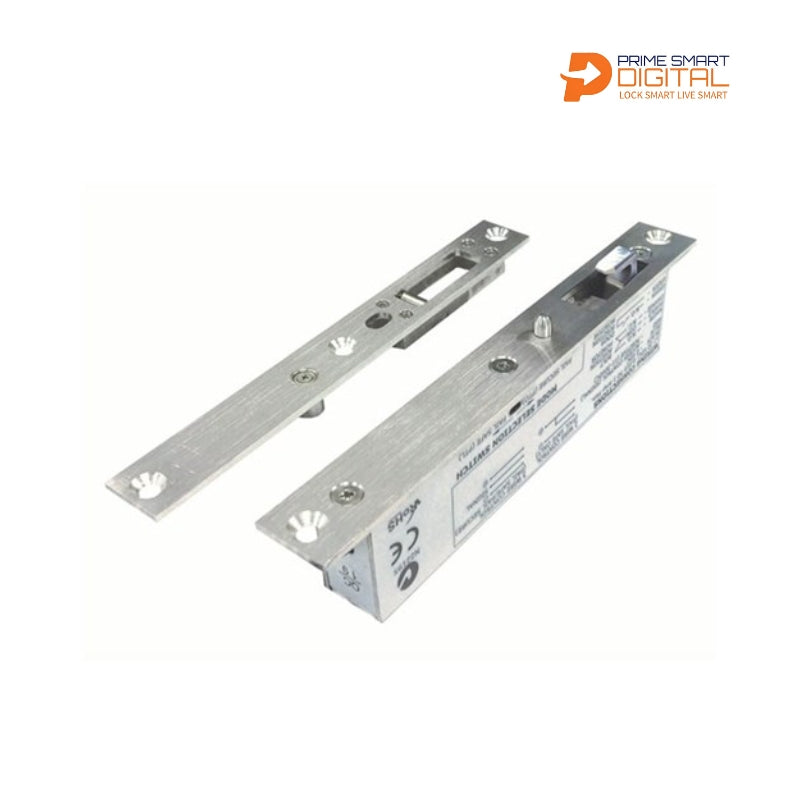

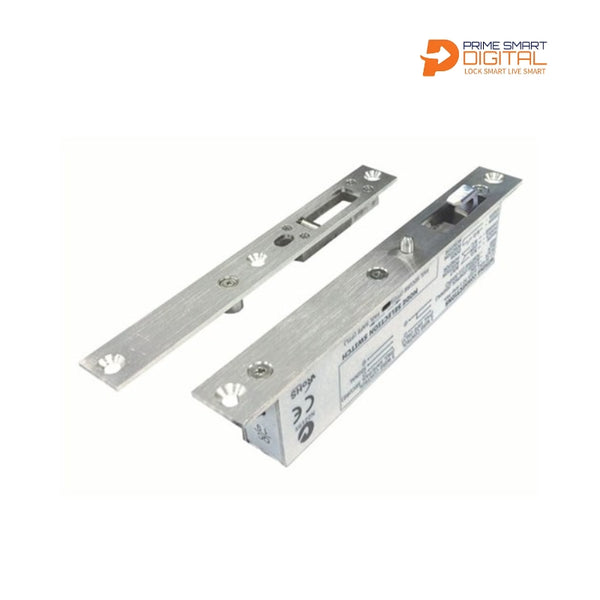

The patented HL1260 is a high torque motor driven hook lock for a sliding door. It can be installed vertically in the door frame (lock style) with the strike plate mounted on the edge of the door.

Alternatively there is a surface mount box for the strike plate and/or lock for a sliding door.

The HL1260 is considered a “Green Product” as it consumes an in-rush current of 290mA@12VDC only during locking and unlocking action (active Mode), then in the locked or unlocked state (Sleep-Mode), it consumes current less than 15mA@12VDC.

The Hook Lock HL1260 should not be installed to doors exposed to wind and weather.

  • Motorised locking device.
  • Mortice Mount, power-to-lock/power-to-release field interchangeable.
  • Durability tested to 400,000 cycles.
  • Multi voltage from 12 to 30VDC.
  • Sleep-Mode Current less than 15mA@12VDC.
  • Fully monitored including Reed Switch for door position.
  • Up to 650 kg Holding Strength.
  • 5 year warranty.

Technical Specifications

  • Brand    FSH
  • Current    290 mA @ 12 Vdc
  • Field Selectable Fail Safe/Fail Secure    Yes
  • Holding Strength in kg    650
  • Working Voltage    12 Vdc to 30 Vdc
