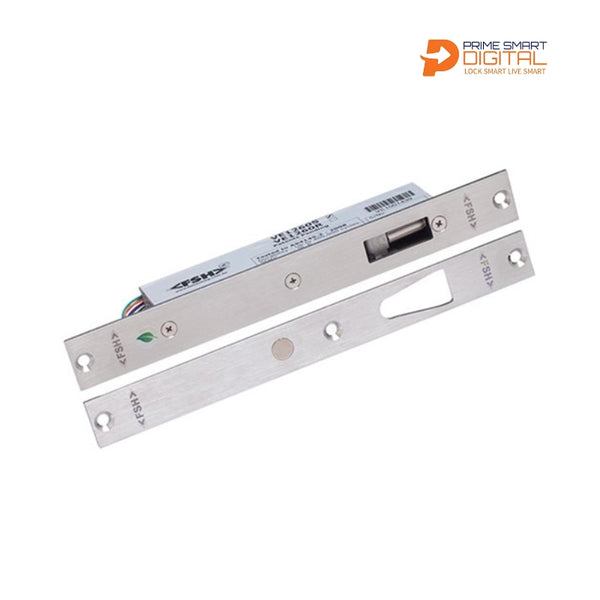

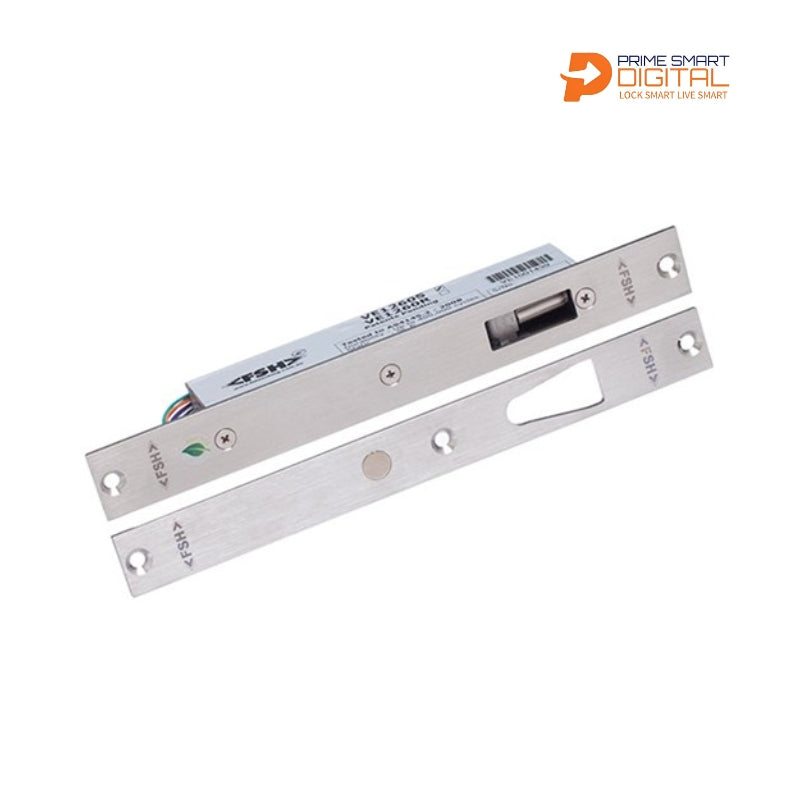

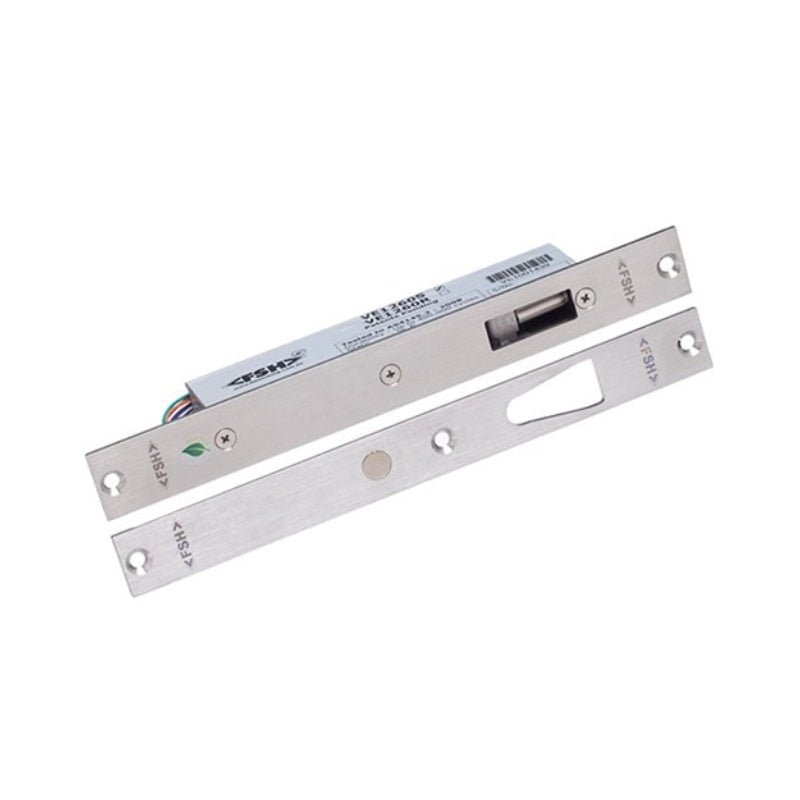

FSH VE1260S Drop Bolt, Square End Face Plate, Fully Monitored with 35kg Pre-Load, 4 Hour Fire Rated - VE1260S

• Releases with up to 35kg of pre-load/side load.
• Motorised locking device.
• Simple PTO/PTL locking mode changeover.
• Square end face plate for retro fitting to existing installations.
• Tested to 400,000 cycles.
• Multi voltage from 12Vdc to 30Vdc.
• 12Vdc initial current draw 1Amp standby/sleep mode less than 15mA @ 12Vdc.
• Fully monitored including door position reed.
• 1000Kg holding force.
• Face plate dimensions 256 (L) x 30 (W) x 3 mm (T).
• Body dimensions 163 (L) x 22.5 (W) x 41.5 mm (D).
• Strike dimensions 256 (L) x 27 (W) x 3 mm (T).
• Fire rated up to 4 hours.
• 5 year warranty.

Technical Specifications

• Brand    FSH
• Current    1 A @ 12 Vdc
• Field Selectable Fail Safe/Fail Secure    Yes
• Holding Strength in kg    1000
• Operates Under Pre-load up to    35 kg
• Working Voltage    12 Vdc to 30 Vdc
• Fire Rated    Yes, 4 Hours
• Door Status Sensor    Yes
• Locking Mode    Fail Secure/Fail Safe
