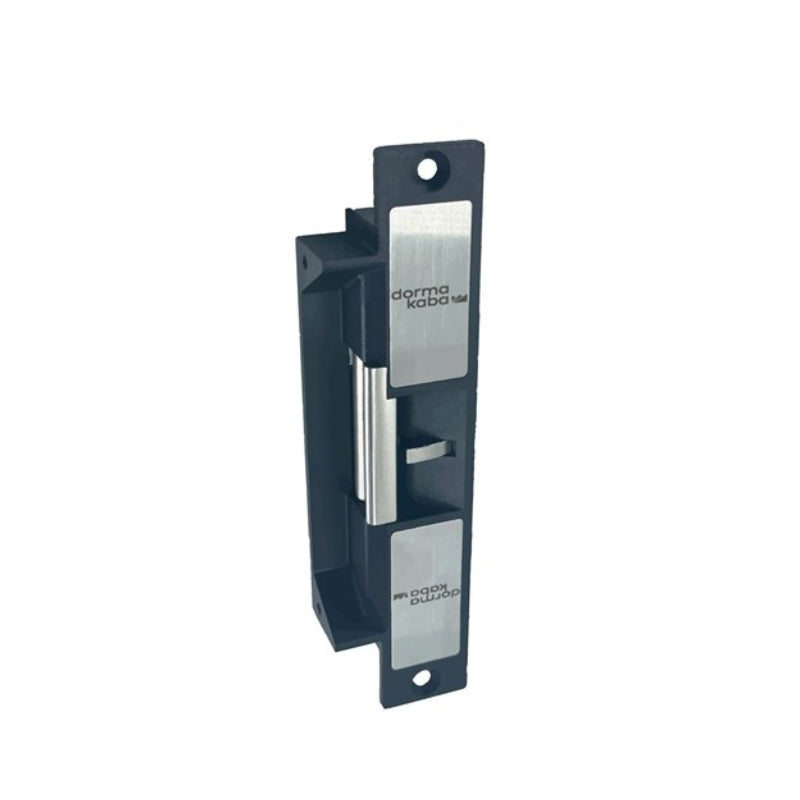

Kaba E/Strike Kes2200 Heavy Duty Monitored

The KES2200 series electric strikes are designed for use with all access control systems.

Fail safe/fail secure is changeable on site.

Suitable for use on hinged doors to work with a extensive range of locks.

Successfully fire rated up to 2hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 ( Fire resistant door sets) .

• Multi voltage 12~28VAC/DC.
• Current 12V DC @ 230mA, 24V DC @ 140mA.
• Monitored latch, keeper and solenoid.
• Fire rated up to 2 hours.
• Power to lock/power to open field selectable.
• Stainless steel construction.
• Optional extension lips.
• Includes tab mounting kit.
• Pre-drilled for extension lips.
• Holding strength of over 920kg.
• CE Certified.
• C-Tick.
• KES2200 is suitable for 15 mm latch with a 3 mm door gap.

Technical Specifications

• Brand    DORMAKABA
• Current    230 mA @ 12 Vdc, 140 mA @ 24 Vdc
• Drilled for Lip Extension    Yes
• Field Selectable Fail Safe/Fail Secure    Yes
• Holding Strength in kg    920
• Working Voltage    12 Vdc to 28 Vdc
• Fire Rated    Yes, 2 Hours
• Locking Mode    Fail Secure/Fail Safe
• Monitoring    Monitored
