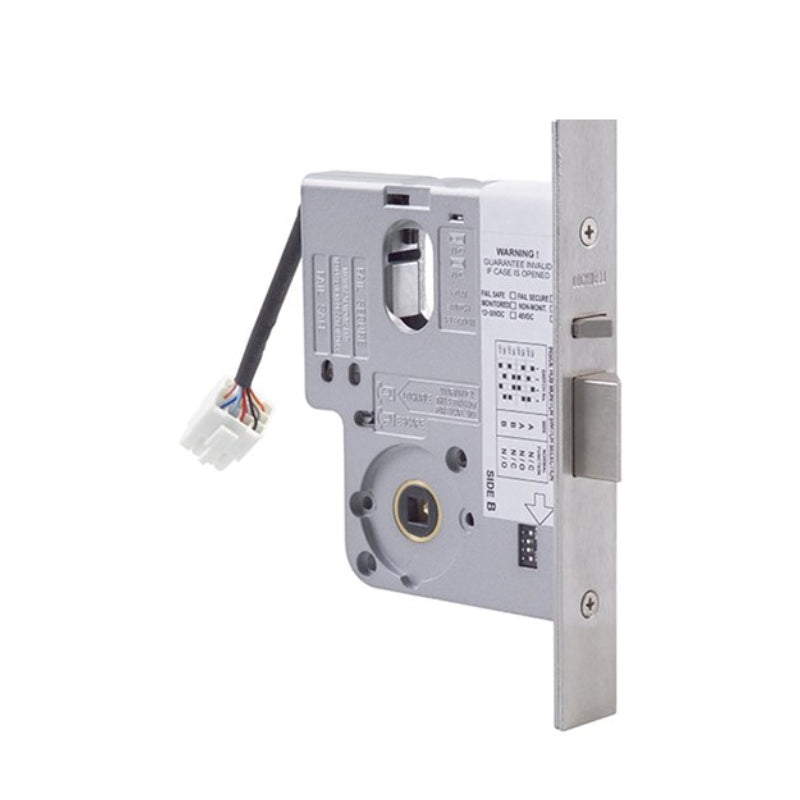

Lockwood 3570 Electric Mortice Lock, 60mm Backset, Fully Monitored, Field Configurable - 3570ELM0SC

• 3570 monitored electric mortice lock.
• Field selectable Fail Safe or Fail Secure function.
• 60 mm backset, 89 and 127 mm also available.
• Solenoid locking/unlocking of lever handles.
• Operating voltage 12-24Vdc.
• Operating Current:
  500mA (max) 80mA holding @ 12Vdc
  275mA (max) 50mA holding @ 24Vdc
• Includes 1.6 metre cable with 12 pin socket.
• Supplied with positive latching 12 pin plug emanating from the top of the lock on a short length of cable.
• Reversible for left and right hand doors opening in or out.
• Suits door thickness 32-50 mm.
• Protection diode is included for back EMF suppression.
• Selectable on site for one or both lever handles being locked by solenoid without dismantling the lock.
• Reed switch located inside the housing.
• Supplied less cylinder.
• Mortice lock can be converted from escape function to combination function by simple manipulation of hub snib.
• Fire rated.
• Finished in satin chrome.

Standards and Compliance:

• SL8 (Security) Australian Lock Standard (AS4145.2.2008)
  (when used with equivalent security level keying system).
• D8 (Durability) Australian Lock Standard (AS4145.2.2008).
• RCM Certified.
• SCEC Endorsed for SL3 Medium Threat Level Areas.

Technical Specifications

• Brand    LOCKWOOD
• Field Selectable Fail Safe Or Fail Secure    Yes
• SCEC Endorsed    Yes
• Working Voltage    12 Vdc to 24 Vdc
• Backset    60 mm
• Fire Rated    Yes
• Handing    Reversible
• Monitoring    Monitored
