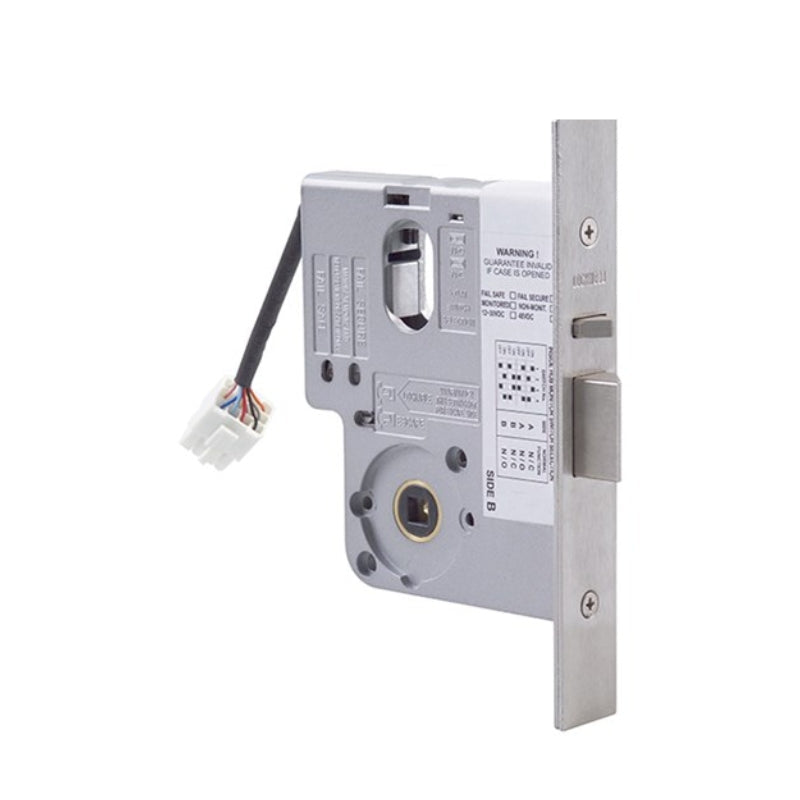

Lockwood 3570 Electric Mortice Lock, 60mm Backset, Non-Monitored, Field Configurable (3570ELN0SC)

SKU: 3570ELN0SC
Barcode: 9312341380996
$685.80
$685.80

Prices include GST, Shipping added at checkout- $11.90
Free pick up available at store

Description

Lockwood 3570 series electric mortice lock. Less cylinder. Suitable for commercial applications.

Non monitored.

The lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.

 Fire rated to 4 hours.

  • 3570 non monitored electric mortice lock.
  • Field selectable Fail Safe or Fail Secure function.
  • 60mm backset, 89 and 127mm also available.
  • Solenoid locking/unlocking of lever handles.
  • Operating voltage 12-24Vdc.
  • Operating Current:
    500mA (max) 80mA holding @ 12Vdc
    275mA (max) 50mA holding @ 24Vdc
  • Includes 1.6 metre cable with 12 pin socket.
  • Supplied with positive latching 12 pin plug emanating from the top of the lock on a short length of cable.
  • Reversible for left and right hand doors opening in or out.
  • Suits door thickness 32-50mm.
  • Protection diode is included for back EMF suppression.
  • Selectable on site for one or both lever handles being locked by solenoid without dismantling the lock.
  • Conforms with Level D3 (durability) Australian Lock Standard AS4145.2: 1993.
  • Supplied less cylinder.
  • Mortice lock can be converted from escape function to combination function by simple manipulation of hub snib.
  • Fire rated.
  • Finished in satin chrome.

Technical Specifications

  • Brand    LOCKWOOD
  • Field Selectable Fail Safe Or Fail Secure    Yes
  • SCEC Endorsed    No
  • Working Voltage    12 Vdc to 24 Vdc
  • Backset    60 mm
  • Handing    Reversible
  • Monitoring    Non-Monitored
