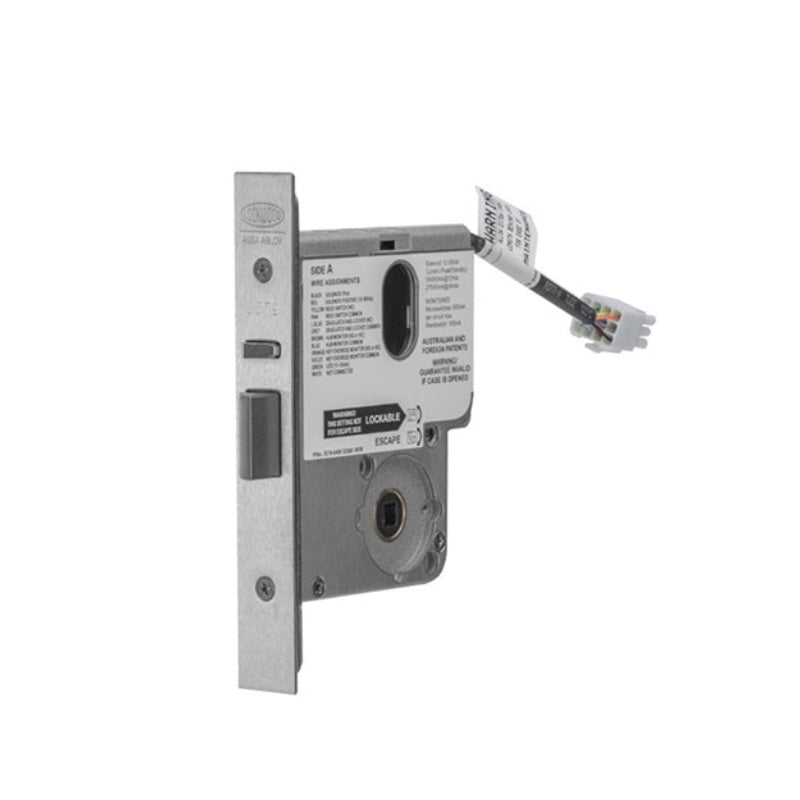

Lockwood 3579 Electric Mortice Lock, 60mm Backset, Fully Monitored, Field Configurable, SCEC Approved (3579ELM0SC)

Lockwood 3579 Electric Mortice Lock, 60mm Backset, Fully Monitored, Field Configurable, SCEC Approved (3579ELM0SC)

SKU: LW3579ELM0SC
Barcode: 9312341376470
$1,229.85
$1,229.85

Express Shipping Option Available at Checkout

Description

Lockwood 3579 series electric mortice lock. Less cylinder. Suitable for commercial applications.

The Lockwood 3579 is SCEC endorsed for secure area applications.

Monitoring includes dual key override, deadlatching, door closed, door locked, request to exit and reed switch.

The lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.

firerated-icon Fire rated to 4 hours.

warning-icon To achieve secure area rating, the 3579 mortice lock must also:

  • Be fitted with a SCEC endorsed 570 cylinder which is also secure area rated,
  • Be fitted with full plate furniture, including 1800 series, 2800 series or Artefact series II.

SCEC Approved Product

  • 3579 monitored electric mortice lock.
  • 2 x 2 mm stainless steel plates fixed through the lock provide increased strength to the cylinder and latch areas of the lock.
  • All handing type features of the lock including hub selection, anti-lockout screw and reversible latch are accessible without removing the plates.
  • Field selectable Fail Safe or Fail Secure function.
  • 60 mm backset, 89 and 127 mm also available.
  • Solenoid locking/unlocking of lever handles.
  • Operating voltage 12-24Vdc.
  • Operating Current:
    500mA (max) 80mA holding @ 12Vdc
    275mA (max) 50mA holding @ 24Vdc
  • Includes 1.6 metre cable with 12 pin socket.
  • Supplied with positive latching 12 pin plug emanating from the top of the lock on a short length of cable.
  • Reversible for left and right hand doors opening in or out.
  • Suits door thickness 32-50 mm.
  • Protection diode is included for back EMF suppression.
  • Selectable on site for one or both lever handles being locked by solenoid without dismantling the lock.
  • Reed switch located inside the housing.
  • Supplied less cylinder.
  • Mortice lock can be converted from escape function to combination function by simple manipulation of hub snib.
  • Fire rated.
  • Finished in satin chrome.

Standards and Compliance:

  • SL8 (Security) Australian Lock Standard (AS4145.2.2008)
    (when used with equivalent security level keying system).
  • D8 (Durability) Australian Lock Standard (AS4145.2.2008).
  • RCM Certified.
  • SCEC Endorsed for SL3 Medium Threat Level Areas.

Technical Specifications

  • Brand    LOCKWOOD
  • Field Selectable Fail Safe Or Fail Secure    Yes
  • SCEC Endorsed    Yes
  • Working Voltage    12 Vdc to 24 Vdc
  • Backset    60 mm
  • Fire Rated    Yes
  • Handing    Reversible
  • Monitoring    Monitored
