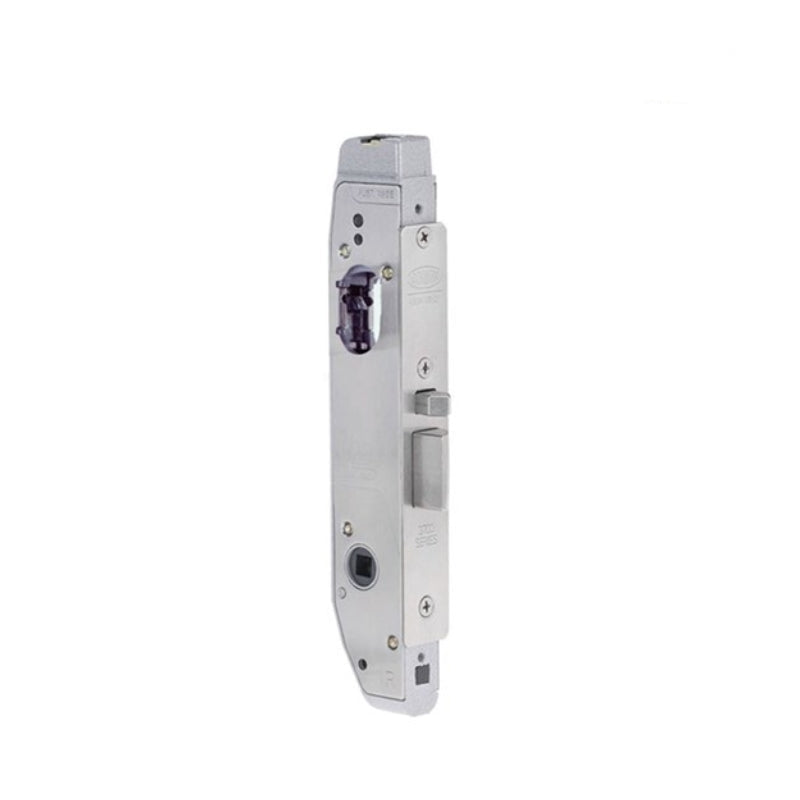

Lockwood 3782 Electric Mortice Lock, 23mm Backset, Fully Monitored, Field Configurable - 3782ELSS

Designed for metal doors, the Lockwood 3782EL features simple in-field selectable fail safe or fail secure modes. Compatible with push buttons, intercoms, key switches, and electronic access control systems. Offers comprehensive monitoring including request to exit (REX), deadlatch, door position, KOM, and lock status. Includes 3.6m cable with 12-pin connector and water deflecting boot. Reversible handing and motor-driven for efficient power use.

Key Features:

• Field-selectable power to lock or power to open

• Operates on 9–28 VDC, max 300mA

• Full monitoring: REX, deadlatch, door position, KOM, lock status

• Onboard door status LEDs for easy installation

• Unique double reader fail-safe/fail-secure function

• Motor-driven for low power consumption

• 23mm backset standard (25.4, 30, 38 mm available)

• Suitable for metal doors 35–50 mm thick

• Supplied less cylinder, with X7 cam

• Compatible with 4800 & 5800 series furniture

• Meets Australian Standards AS4145.2-2008 for security (S7/S8), durability (D8), and corrosion resistance (C6)
