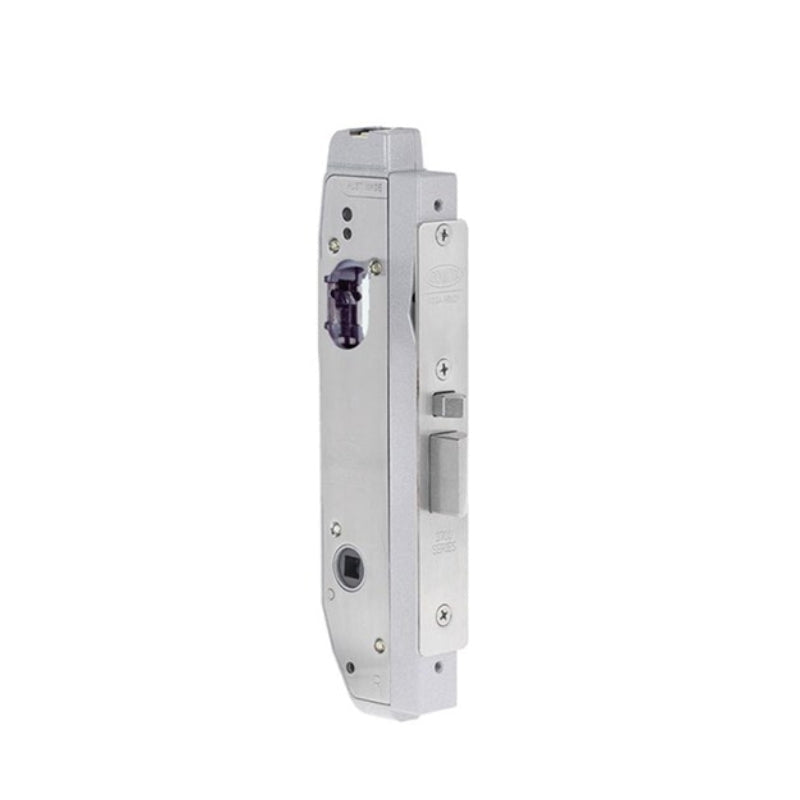

Lockwood 6782 Electric Mortice Lock, 38mm Backset, Fully Monitored, Field Configurable (6782ELSS)

• 6782 electric mortice lock.
• Simple in field selectable from power to lock to power to open.
• 9 – 28VDC.
• 300mA MAX (20mA continuous if LEDs are activated).
• Full range of monitoring including REX, Deadlatch, Door position, KOM and lock status.
• On board door status LEDs improves installation and reliability.
• Unique functions for double reader applications which allows external side to fail securely while internal side fails safe allowing free egress escape.
• Motor driven providing lower power usage in some applications.
• 38 mm backset, 25.4 and 30 mm available upon request.
• Suits metal door thickness 35-50 mm.
• Supplied less cylinder.
• Supplied with X7 (3700X7CAM) cam.
• Supplied with 3.6m cable with 12 pin connector and water deflecting boot.
• Compatible with 4800 and 5800 series furniture.
• Finished in stainless steel.

Security: All Selector® 3782EL Series Cylinder Mortice Locks conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder.

Durability: All Selector® 3782EL Series Cylinder Mortice Locks conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008).

Anti-Corrosion: All Selector® 3782EL Series Cylinder Mortice Locks conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008).

Technical Specifications

• Brand    LOCKWOOD
• Field Selectable Fail Safe Or Fail Secure    Yes
• Working Voltage    9 Vdc to 28 Vdc
• Backset    38 mm
• Handing    Reversible
• Monitoring    Monitored
