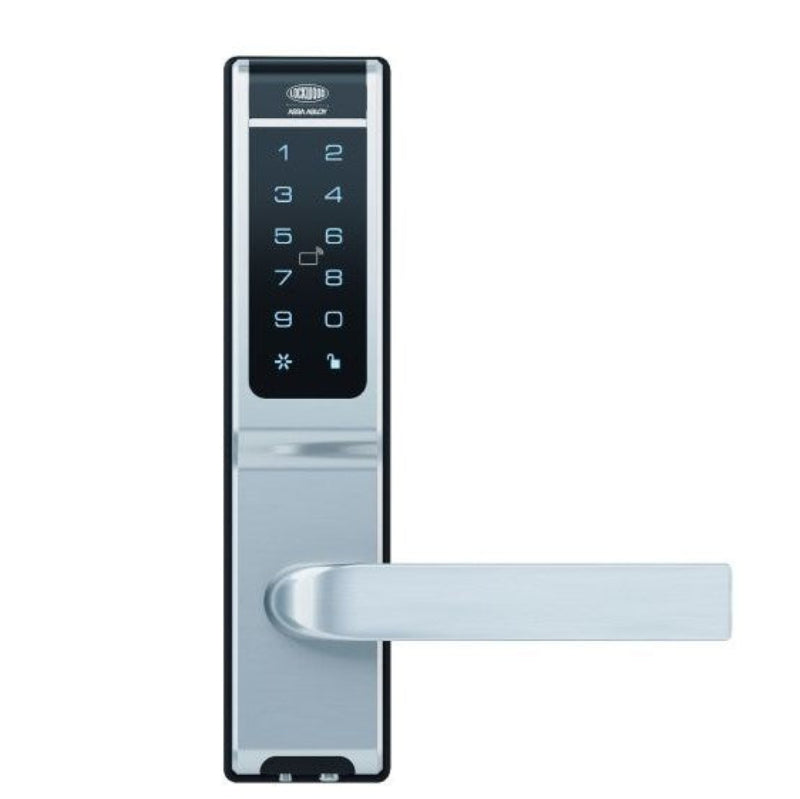

ASSA ABLOY Lockwood CORTEX CTX530 Digital Lockset

The Lockwood CORTEX CTX530 by ASSA ABLOY is a commercial-grade standalone digital lockset designed for high-security applications. Certified fire rated for 530 tubular latch and mortice variants, it provides secure keyless entry via PIN or RFID card. With up to 40 card and 20 PIN users, dual authentication options, and timed access features, the CTX530 offers flexible, intelligent access control in a sleek satin chrome finish.

Key Features:

• Supports 40 RFID cards and 20 PIN codes

• Dual credential mode (card + PIN)

• Fire rated to AS1905.1 (2 hours)

• Vandal resistant to SL8 rating

• Easy or Advanced user modes

• One-time, visitor, and timed access codes

• Smart battery monitoring

• Passage and timed passage modes

• Ergonomic 77A lever (AS1428.1 compliant)

• Includes 2 access cards (expandable to 40)

• Compatible with Mifare and iClass cards

• No key override – digital-only access

Specifications:

• Brand: Lockwood (ASSA ABLOY)

• Model: CTX530

• Finish: Satin Chrome (SC)

• Backset: 60 mm

• Door Thickness: 35–48 mm

• Lock Type: 530 tubular latch

• Power: Battery operated (up to 40,000 operations)

• Override Cylinder: No

• Fire Rated: Yes

• Lever Type: 77A (AS1428.1 compliant)

• Body Material: Zinc Alloy

• Compliance: AS1905.1-2005, AS4145.2:1993
