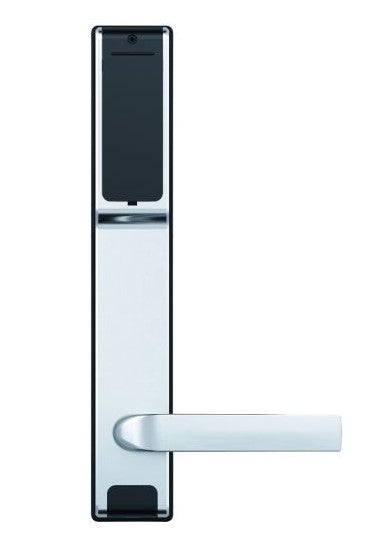

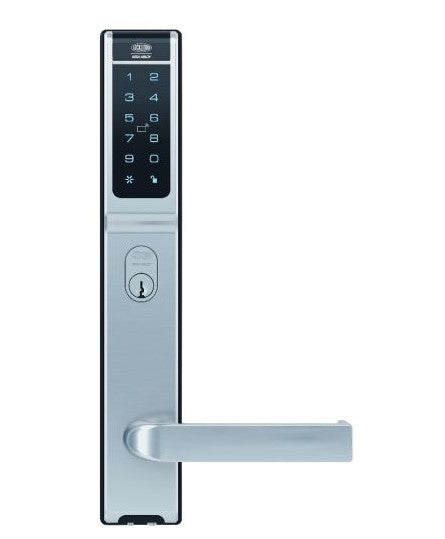

Lockwood Cortex Card+Pin 5782 35-48 Sc With 5782 Lock Satin Chrome

The Lockwood CORTEX is a commercial-grade standalone digital lock by ASSA ABLOY, ideal for high-security applications. It supports PIN and RFID card access, is fire-rated for mortice and 530 latch variants, and allows free egress from inside. CORTEX offers flexible modes, dual authentication, and supports up to 40 cards and 20 PIN users.

Key Features:

• Standalone or integrated access control

• Supports 40 card and 20 PIN users

• Fire rated to AS1905.1 (2 hours)

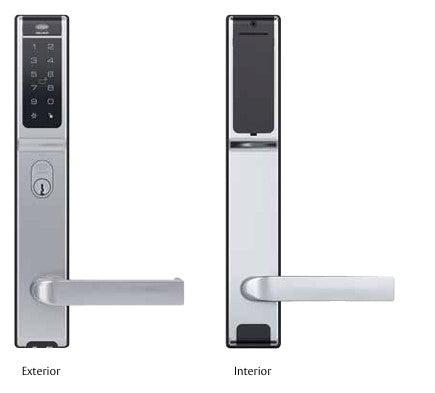

• Free egress function from inside

• Dual authentication (PIN + card)

• One-time, visitor, and timed PIN support

• Battery life: Up to 40,000 operations

• Smart battery monitoring

• Passage and timed passage modes

• SL8-rated vandal resistance

• Ergonomic 77A lever (AS1428.1-2009 compliant)

• Compatible with Mifare & iClass card formats

• Supplied with 2 RFID cards

• Satin Chrome finish

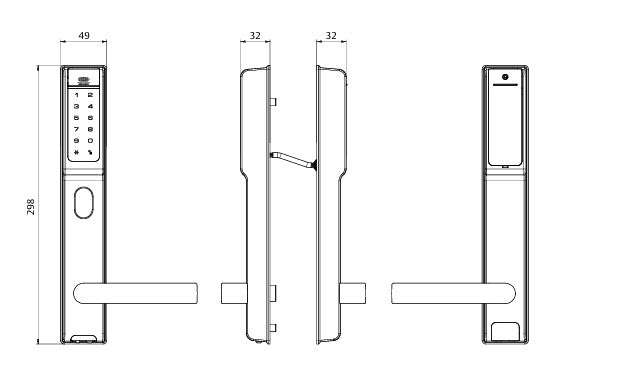

Specifications:

• Brand: Lockwood (ASSA ABLOY)

• Model: CORTEX

• Finish: Satin Chrome

• Backset: 60 mm

• Door Thickness: 35–48 mm

• Lock Type: Mortice / Latch

• Fire Rated: Yes

• Battery Operated: Yes

• Override Cylinder: Yes

• Lever Type: 77A (AS1428.1 compliant)
