Lockwood Padde ES2600 24VDC Panic Bar Electric Strike, Fully Monitored, Fail Safe - ES2600-3

Lockwood Padde ES2600 24VDC Panic Bar Electric Strike, Fully Monitored, Fail Safe - ES2600-3

SKU: PA102603000
Barcode: 9312341303272
$673.65
$673.65

Prices include GST, Shipping added at checkout- $11.90
Free pick up available at store

Description

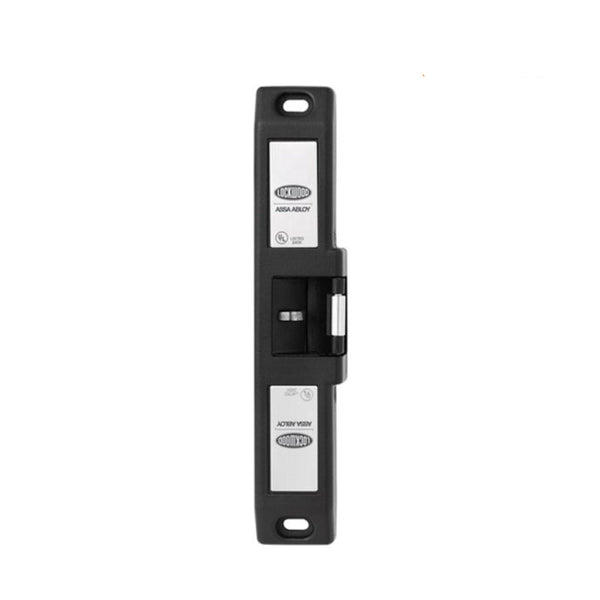

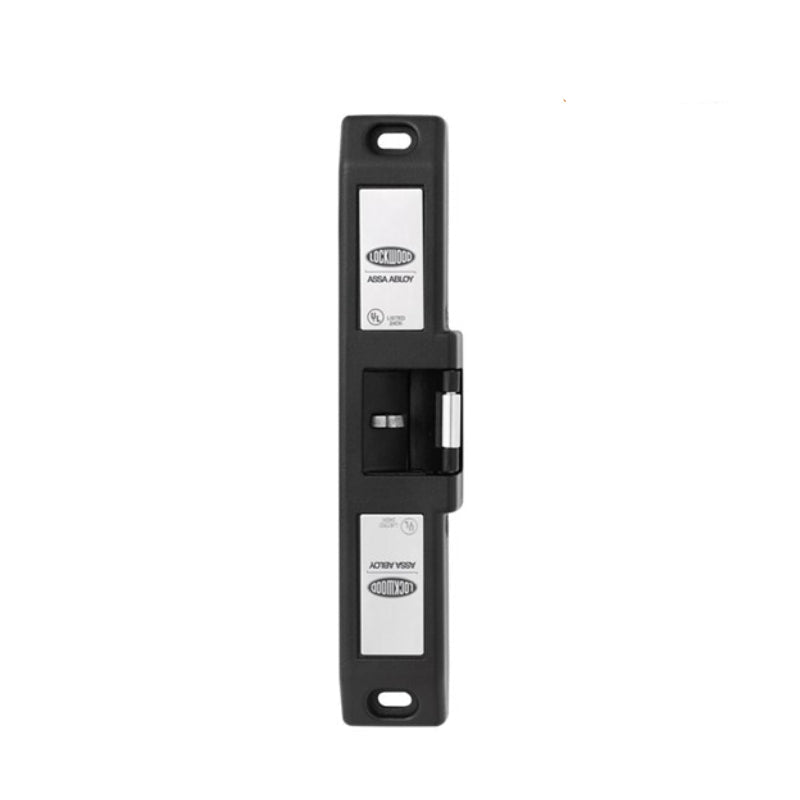

The ES2600 Series 24VDC surface mounted electric strikes are high security products manufactured from solid stainless steel and designed to be used with existing and new panic bars fitted to emergency doors.

When used in conjunction with a standard access control system, these strikes convert "Exit only" doors with "Pullman type" latches into a full access controlled door, thereby allowing authorised access from the secure side.

The ES2600 series are fully monitored with both solenoid and latch/door monitoring functions & can be changed from fail safe to fail secure on site.

Applications:

  • For use with panic bars.
  • Surface mount.
  • Egress doors.
  • Fire rated door sets.
  • Open out door sets.
  • Suitable for use with all access control systems.
  • Fail safe/fail secure changeable on site.
  • High security.
  • Available in 24 or 12Vdc.
  • 650kg holding force.
  • 1 million cycles endurance rating.
  • Body depth only 27 mm.
  • Cast stainless steel body.
  • Low current consumption - max 175mA @ 12Vdc - 88mA @ 24Vdc.
  • Continuously rated solenoid.
  • Installation template.
  • TRICARE 5 Year Warranty.
  • Approved to UL1034 (highest level).
  • CE Approved.
  • C-Tick Certified.

Technical Specifications

  • Brand    PADDE
  • Current    88 mA @ 24 Vdc
  • Field Selectable Fail Safe/Fail Secure    Yes
  • Holding Strength in kg    650
  • Operates Under Pre-load up to    0 kg
  • Working Voltage    24 Vdc
  • Locking Mode    Fail Secure/Fail Safe
  • Monitoring    Monitored Strike and Door Status
