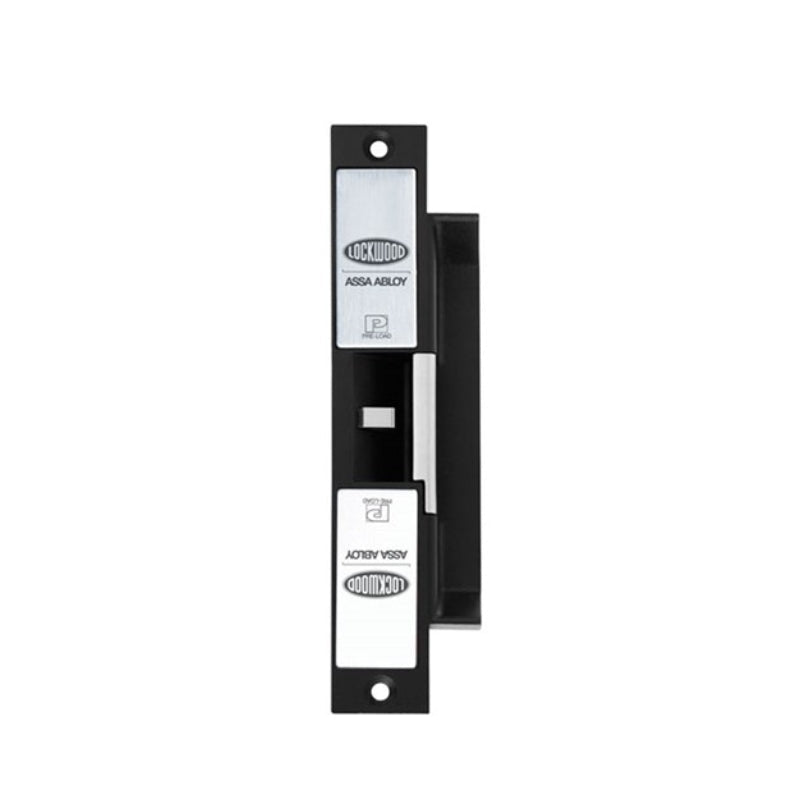

Lockwood Padde ES9000 Electric Strike – High Security, Fire Rated, SCEC Level 3

The PADDE ES9000 is a high-security electric strike designed for demanding access control environments. Made from solid stainless steel and manufactured in Melbourne, it offers superior durability, 4-hour fire rating, and SCEC Security Level 3 approval (with approved keying system).

• Fire rated up to 4 hours (with approved door set)

• SCEC approved for Security Level 3

• Operates under up to 25kg of pre-load (side pressure)

• Fully monitored: strike locked, door closed, and solenoid status

• Field-selectable fail-safe/fail-secure operation

• Suitable for 15mm latch bolt with 3mm door gap

• Holding strength: 1300kg static load

• Endurance rated: 1,200,000 cycles at 25kg pre-load

• Built-in silencer pad for quiet operation

• Multi-voltage: 10–30VDC (250mA @ 12VDC / 130mA @ 24VDC)

• IP54 weather-resistant rated

• Stainless steel body and striker with 3 hardened locking pins

• Includes mounting tabs, lip holes, and self-adhesive template

• C-Tick and CE compliant

Specifications:
Brand: PADDE
Model: ES9000
Voltage: 10–30VDC
Current: 250mA @ 12VDC, 130mA @ 24VDC
Monitoring: Yes (strike, door, solenoid)
Fire Rated: Yes (4 hours)
Pre-load Rating: Up to 25kg
Holding Strength: 1300kg
Endurance: 1,200,000 cycles
SCEC Endorsed: Yes (SL3 with approved keying system)
IP Rating: IP54
Locking Mode: Fail Safe / Fail Secure (reversible)
