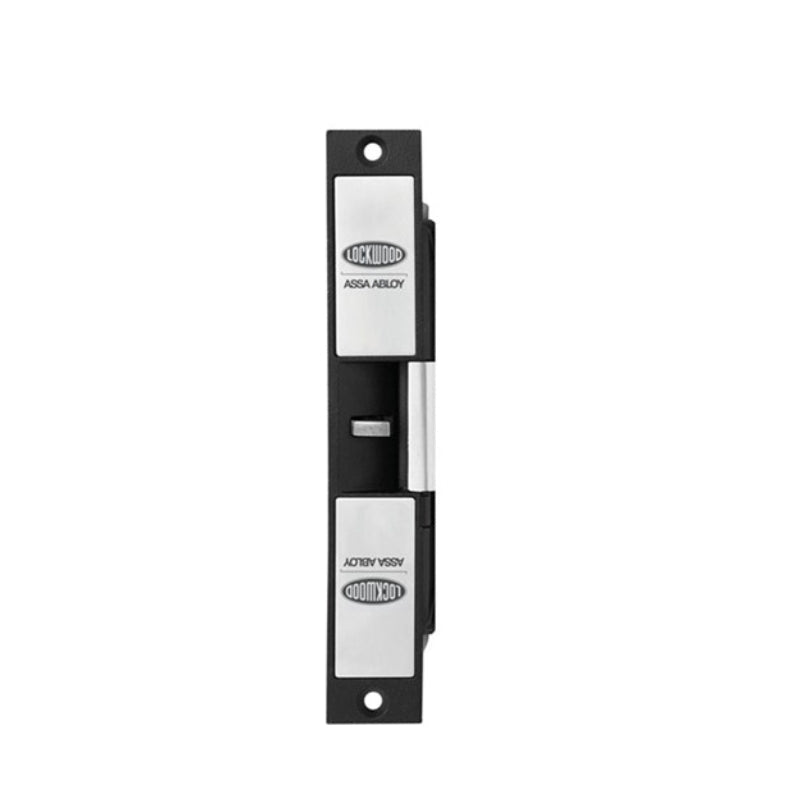

PADDE ES9000 Electric Strike – 12–24VDC, High Security, Fire Rated, SCEC Approved

The PADDE ES9000 is a high-security electric strike, designed for special application doors requiring access control. Manufactured in Melbourne from solid stainless steel, it is fire rated up to 4 hours and approved for Security Level 3 installations.

• Operates under pre-load (side pressure) up to 25kg

• Fire rated for up to 4 hours (with approved door set)

• Field-selectable fail-safe or fail-secure

• Fully monitored: strike locked, door closed, and solenoid status

• Stainless steel striker with 3 hardened locking pins

• Quiet operation with integrated silencer pad

• Multi-voltage operation: 12–24VDC

• Low current consumption: 250mA @ 12VDC, 130mA @ 24VDC

• Weather-resistant (IP54 rated)

• Endurance rated to 1,200,000 cycles under 25kg pre-load

• Static holding strength: 1300kg

• Suitable for 15mm latch bolt with 3mm door gap

• Includes self-adhesive installation template and mounting tabs

• Australian Government listed and SCEC endorsed

• C-Tick and CE compliant

Specifications:
Brand: PADDE
Model: ES9000

Voltage: 12–24VDC
Current: 250mA @ 12VDC, 130mA @ 24VDC
Monitoring: Yes (strike, solenoid, and door/latch status)
Holding Force: 1300kg
Fire Rated: Yes (4 hours)
Pre-load Tolerance: Up to 25kg
IP Rating: IP54
SCEC Endorsed: Yes (Security Level 3)
Locking Mode: Fail Safe / Fail Secure (field changeable)
Material: Solid Stainless Steel
