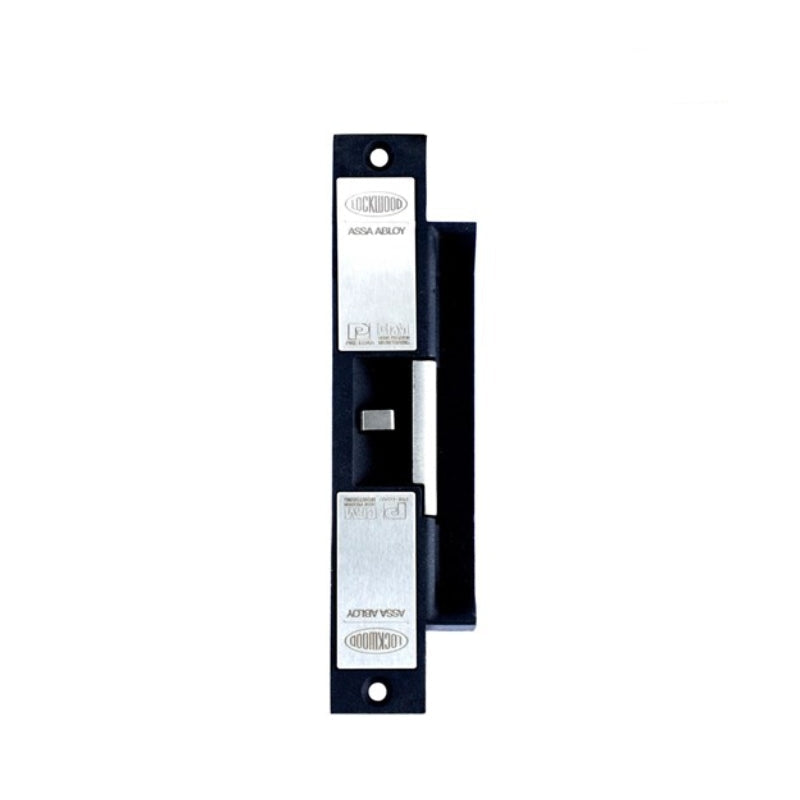

Lockwood Padde ES9100 Electric Strike

The ES9100 electric strike from Lockwood Padde offers premium security with enhanced durability and smart monitoring features. Designed for harsh commercial environments, it supports up to 25kg pre-load pressure on the keeper, preventing issues from warped doors or pressure differentials. Tested for over 2.5 million cycles, it delivers a strong 1300kg holding force and includes integrated Door Position Monitoring via a reed switch.

This Australian-designed strike features multi-voltage operation (10–30V DC), field-selectable fail safe/fail secure modes, and weather resistance (IP54). Fire rated up to 4 hours and approved to Australian Lock Standards, the ES9100 is a reliable, long-lasting locking solution.

Key Features:

• Supports up to 25kg pre-load pressure

• Integrated Door Position and Lock Status Monitoring

• 1300kg holding force

• Multi-voltage 10–30V DC operation

• Field-selectable fail safe/fail secure

• Fire rated 4 hours

• Weather resistant (IP54)

• Tested over 2.5 million cycles

• Australian designed and manufactured

• 5-year Tricare warranty
