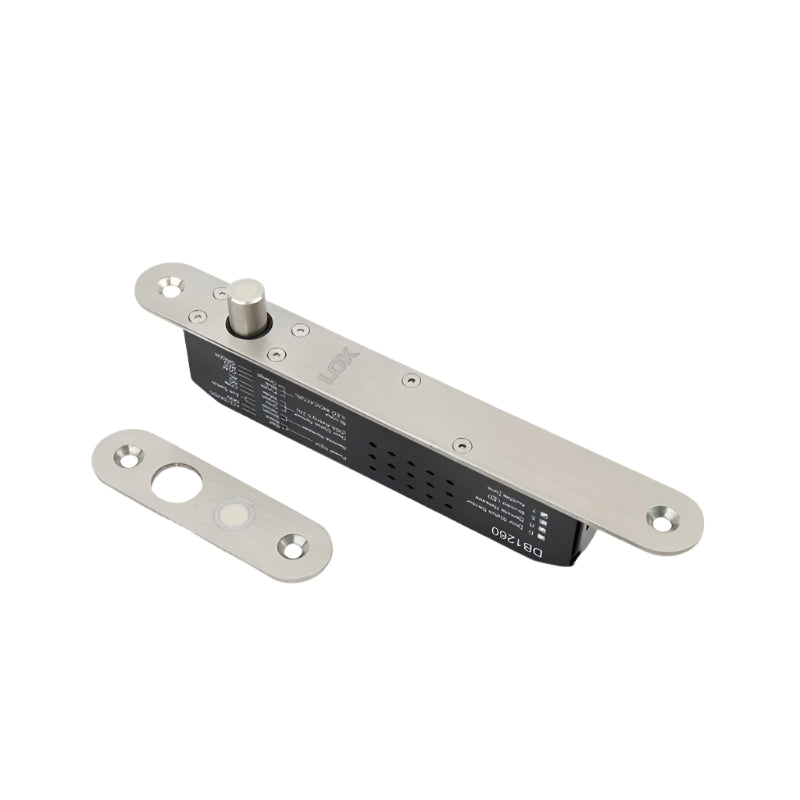

LOX LDB1260 Electric Drop Bolt – Slimline, Fire Rated for Narrow Frames

The LOX LDB1260 is a compact electric drop bolt lock, ideal for narrow-frame swing doors or glass door installations. With a slim 35mm body, it fits 44mm door frames and offers powerful security in a space-saving design.

Choose from Power to Lock or Power to Release formats (fail safe or fail secure – must specify). Fire rated for up to 4 hours, it includes door monitoring, auto-lock function, and adjustable delay settings.

Key Features:

• Slim 35mm body for narrow or glass doors

• 14.5mm bolt throw, 14.7mm bolt diameter

• Power to lock or release (version specific)

• Fire rated for 4 hours (AS/NZS 1905, BS 476)

• Holding force: up to 300kg

• Auto-lock with delay (0, 3, 6, 10 sec)

• Built-in door monitoring

• Surge and IC circuit protection

• Low power consumption

• Faceplate: 25mm × 210mm

• 12V DC (1.15A start, 250mA standby)

• 24V DC (620mA start, 140mA standby)

• Anodised aluminium case

Applications: Ideal for narrow-frame commercial doors, glass doors, and fire-rated doors requiring secure access control.
