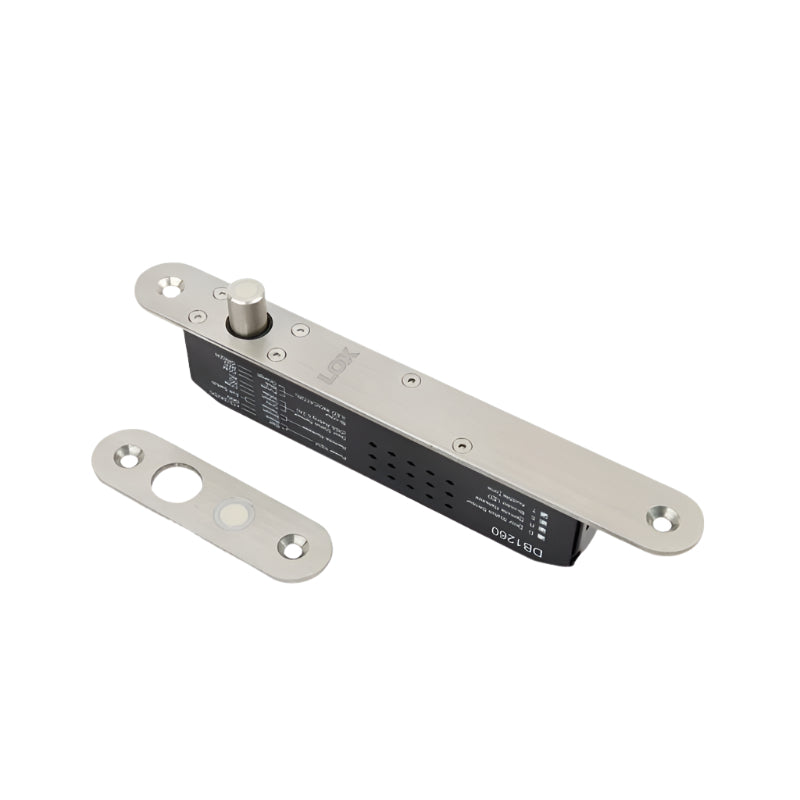

LOX LDB1260 Electric Drop Bolt – Slimline, Fire Rated, for Narrow Frames

The LOX LDB1260 is a compact, fire-rated electric drop bolt ideal for narrow frame swing or glass doors. Designed to fit 44mm door frames with a slim 35mm body depth, it offers a secure locking solution in fail secure or fail safe formats (must be specified at order).

With a 14.5mm bolt throw, built-in door monitoring, and auto-lock with adjustable delay, the LDB1260 ensures both safety and performance. Rated for 4-hour fire resistance, it provides reliable access control in commercial and residential settings.

Key Features:

• Slim 35mm body fits narrow frames and glass doors

• Fire rated for 4 hours (AS/NZS 1905 & BS 476 compliant)

• Power to lock or release (selectable version)

• 14.5mm bolt throw, 14.7mm bolt diameter

• Door position monitoring

• Auto-lock with 0, 3, 6, 10 sec delay settings

• Holding strength up to 300 kg

• Surge protection with IC circuit protection

• Low power consumption:
   • 12V DC (1.15A initial, 250mA standby)
   • 24V DC (620mA initial, 140mA standby)

• Anodised aluminium body

• Faceplate: 25mm x 210mm

Perfect for aluminum, timber, or glass door installations requiring high-security locking.
