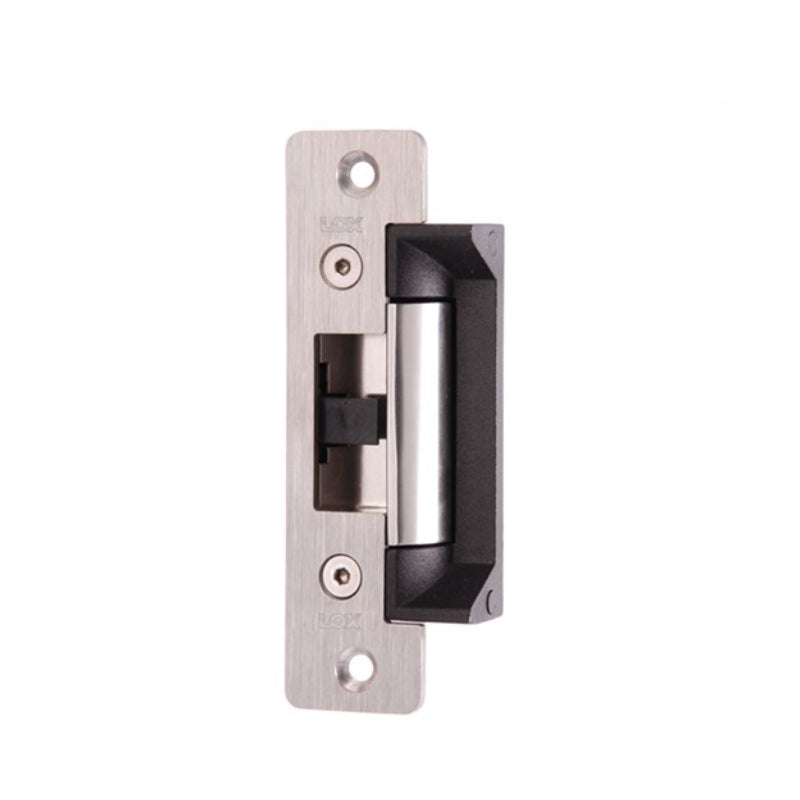

LOX ES10M Electric Strike 12 or 24VDC Monitored 4 Hour Fire Rated - ES10M

The LOX LES10M electric strike is a durable, monitored access control solution designed for hinged doors. Featuring a stainless steel faceplate and striker, this strike is fire-rated for up to 2 hours and supports both fail safe and fail secure modes, selectable on-site.

Built to handle over 1300 kg of holding force, it suits a wide range of locks and is compatible with 18 mm latches and 3 mm door gaps. Includes tab mounting kit, self-adhesive template, and is pre-drilled for optional lip extensions.

Key Features:

• Monitored: Door strike and latch status monitoring

• Dual voltage: 12V DC @ 200mA / 24V DC @ 100mA

• Field-selectable fail safe / fail secure

• Stainless steel faceplate and striker

• Patented barbell steel locking pin

• Solenoid rated for continuous power

• Fire rated to 2 hours (AS/NZS 1905 & BS 476 compliant)

• Holding force: Over 1300 kg

• Includes mounting kit and lip extension options

Specifications:

• Voltage: 12–24V DC

• Current Draw: 200 mA @ 12V / 100 mA @ 24V

• Monitoring: Yes (strike and door status)

• Fire Rating: 2 hours

• Material: Stainless Steel

• Locking Mode: Fail safe / fail secure selectable

• Applications: Access control systems, hinged doors
