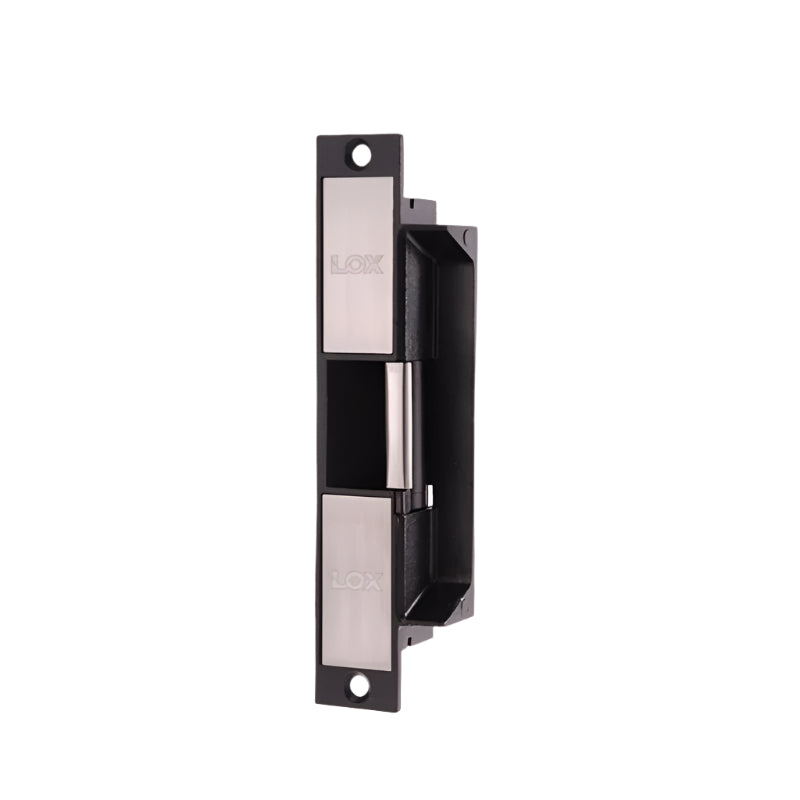

LOX LES20 Electric Strike – Fire Rated, Non-Monitored, Multi-Voltage

The LOX LES20 electric strike is built for compatibility with all access control systems. Made from durable stainless steel, it supports fail safe/fail secure configuration, and is field selectable on-site. It operates across a 12–36V DC range and is fire-rated for up to 4 hours, making it ideal for secure, code-compliant installations on hinged doors.

It includes a 10mm strike lip (standard) with a 5mm extension for additional flexibility and safety.

Key Features:

• Fail safe / fail secure selectable on-site

• Fire-rated up to 4 hours (AS/NZS 1905 & BS 476 compliant)

• Multi-voltage support: 12–36V DC

• Holding strength: over 1490 kg

• Includes 5mm extension lip, adhesive template, and tab mounting kit

• Stainless steel body with pre-drilled lip extension holes

• Solenoid rated for continuous power use

• Compatible with 18mm latch and 3mm door gap

Specifications:

• Voltage Range: 10–28V DC

• Current Draw: 250 mA @ 12V, 125 mA @ 24V

• Fire Rated: Yes

• Monitoring: Non-monitored

• Material: Stainless Steel

• Application: Hinged doors, access control systems
