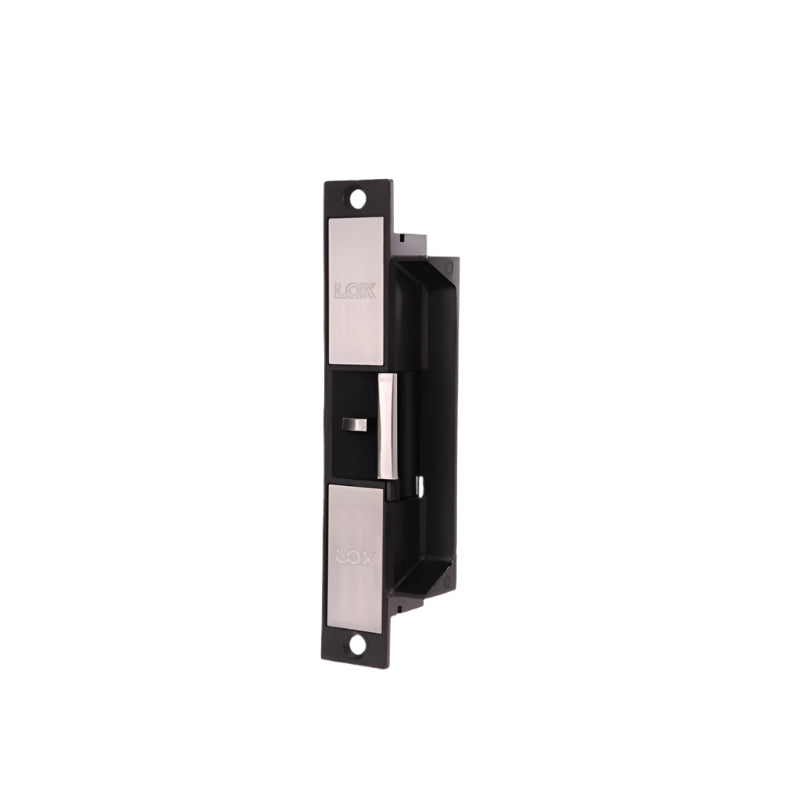

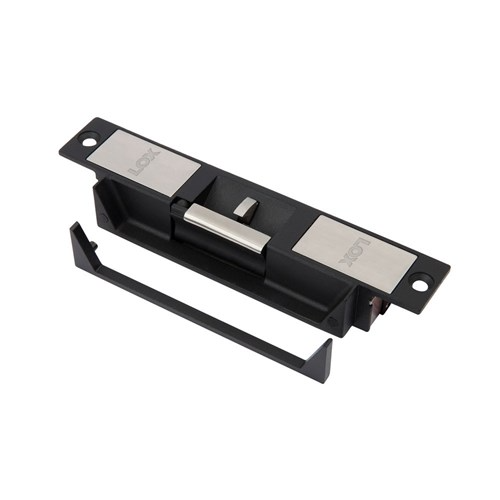

LOX LES20M Series Electric Strike – Monitored, Fire Rated, Multi-Voltage

The LOX LES20M electric strike is a high-security solution designed for use with all access control systems. Made from durable stainless steel, it supports fail safe/fail secure modes, offers multi-voltage compatibility (12–36V DC), and is fire-rated for up to 4 hours.

Ideal for hinged doors, it includes door and lock status monitoring, anti-tamper sensors, and a 10mm strike lip with optional 5mm extension for added flexibility. With a holding force over 1,490 kg, it suits both residential and commercial applications.

Key Features:

• Field-selectable fail safe / fail secure

• Multi-voltage (12–36V DC) operation

• Fire rated up to 4 hours (AS/NZS 1905 & BS 476)

• Monitored for door and lock status + anti-tamper

• Holding strength: 1490+ kg

• Includes rubber buffer, adhesive template, tab mounting kit

• Compatible with 18mm latch and 3mm door gap

• Power to lock / power to open selectable

Specifications:

• Voltage: 10–28V DC

• Current Draw: 250mA @ 12V DC, 125mA @ 24V DC

• Material: Stainless Steel

• Monitoring: DSS, LSS, ATS

• Fire Rating: Up to 4 hours

• Application: Hinged doors, access control systems
