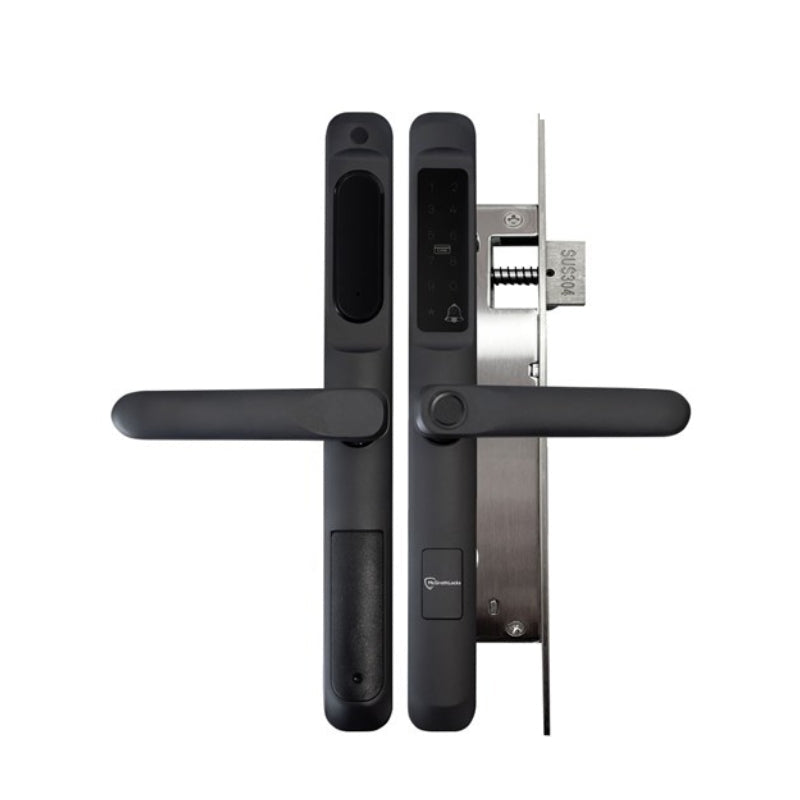

McGrath A236 Slimline Digital Lock, Black Finish with Euro Style 35mm Backset Mortice Lock

The A236 by McGrath Locks is a stylish, slimline digital lock with many features making it a great addition to the home, office or business. This 5 in 1 digital door lock is designed for doors with a narrow stile and provides a versatile and convenient method of entry that allows you to easily manage who has access to your property.

Utilising the powerful TTLock App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through pin code, RFID credential, eKeys managed via BLE and mechanical key override. By adding a McGrath Locks Wi-Fi gateway you can remotely unlock the A236 from anywhere in the world using the TTLock App.

The A236 is supplied with a European mortice lock with 35 mm backset, with a 36 mm wide body the A236 is suited to most aluminium doors.

• Lock functions and access easily managed via TTLock App.
• Enrol Pin Codes, RFID credentials, Fingerprints and send eKeys to your family and visitors.
• Passage Mode can be used to leave your door open when required.
• Inbuilt doorbell on outside keypad.
• Tamper alarm deterrent for vandalism.
• Anti peep code function stops unathorised people seeing the correct code inputted.
• Incorrect attempt lockout.
• Reset button can be disabled in App for additional security.
• Audit trail within App to see who accessed your door and when.
• Low battery alert (within App and audible at the lock).
• 4 x AAA Alkaline Batteries (not included).
• Mechanical key override and USB-C emergency opening.
• Field changeable left and right door handing.
• Compatible with the McGrath Locks 85 series mortice lock range.
• Suits doors thickness 35-55 mm.
• IP65 on external lock housing.
• Lock case dimensions 350 (H) x 36 mm (W).
• Finished in black.

Technical Specifications

• AS1428.1 Compliant Lever (AS1428.1CO)    No
• Finish    Black
• IP Rating    IP65
• Fire Rated    No
• Biometric Fingerprint Access    Yes
• Suits    Standard and Narrow Stile Doors
• Type Of Latch    Mortice Lock
• Assembly Form    With Mortice Lock
