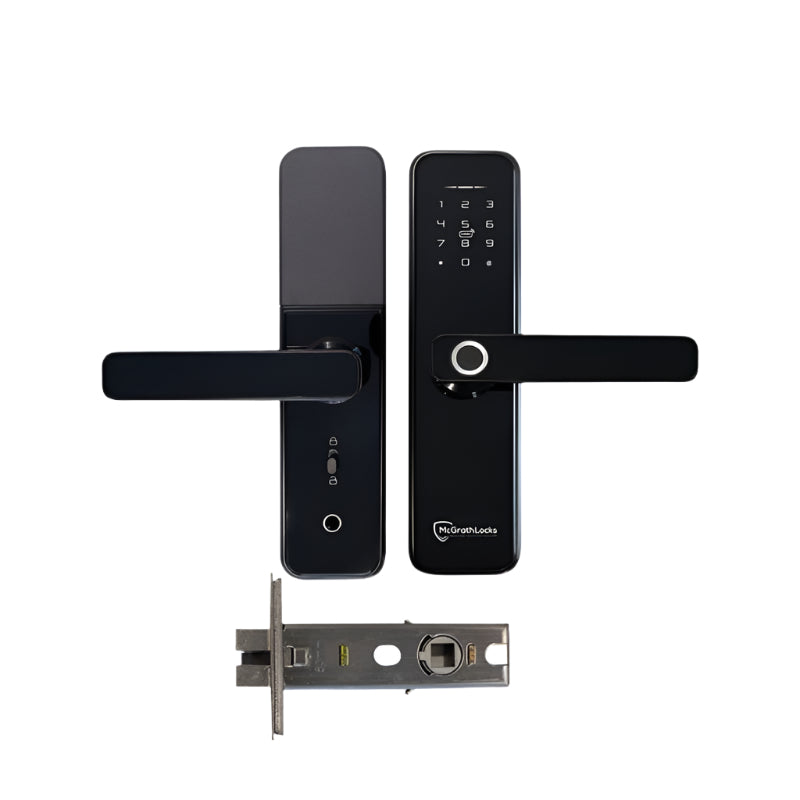

McGrath Locks NX5 Digital Door Lock – 5-in-1 Access, TTLock App Compatible – Black

The McGrath Locks NX5 is a 5-in-1 digital door lock designed for residential, commercial, and office use. It supports multiple access methods including PIN code, RFID card, fingerprint, Bluetooth eKey (via the TTLock App), and mechanical key override. The NX5 can be installed with either an adjustable tubular latch or a European mortice lock, offering flexibility for new installations or retrofitting existing doors.

Using the TTLock App, administrators can configure lock settings, manage users, send digital keys, and review audit trails of access events. Optional remote unlocking is available by pairing the lock with a McGrath Locks Wi-Fi Gateway (sold separately).

The lock includes advanced security features such as anti-peep code input, incorrect attempt lockout, privacy mode, and a USB-C emergency power port.

Key Features:

• 5-in-1 access: Fingerprint, PIN code, RFID card, Bluetooth eKey (via app), and mechanical key override

• Compatible with TTLock App for configuration, access management, and activity logs

• Passage mode and privacy lock mode available via app

• Low battery alert and lockout on incorrect entry attempts

• USB-C port for emergency power access

• Field-changeable handing

• Reset button can be disabled for added security

Technical Specifications:

• Brand: McGrath Locks

• Model: NX5

• Finish: Black

• IP Rating: IP65

• Door Compatibility: Standard stile doors, 38–54 mm thickness

• Lock Type: Tubular latch

• Lock Dimensions: 255 mm (H) x 65 mm (W) x 21 mm (D)

• Power Source: 4 x AA alkaline batteries (not included)

• Fire Rated: No

• AS1428.1 Compliant Lever: No

• Biometric Fingerprint Access: Yes

• Assembly Form: With latch

In the Box:

• NX5 Digital Door Lock

• Adjustable tubular latch (or European mortice option)

• Mechanical keys

• RFID cards

• Installation hardware

• User manual

Additional Compatibility:

• Compatible with McGrath Locks Wi-Fi Gateway (sold separately) for remote access via TTLock App

Note:
Wi-Fi remote access requires optional McGrath Locks Wi-Fi Gateway. This lock is not fire rated and not suitable for doors requiring AS1428.1-compliant hardware.
