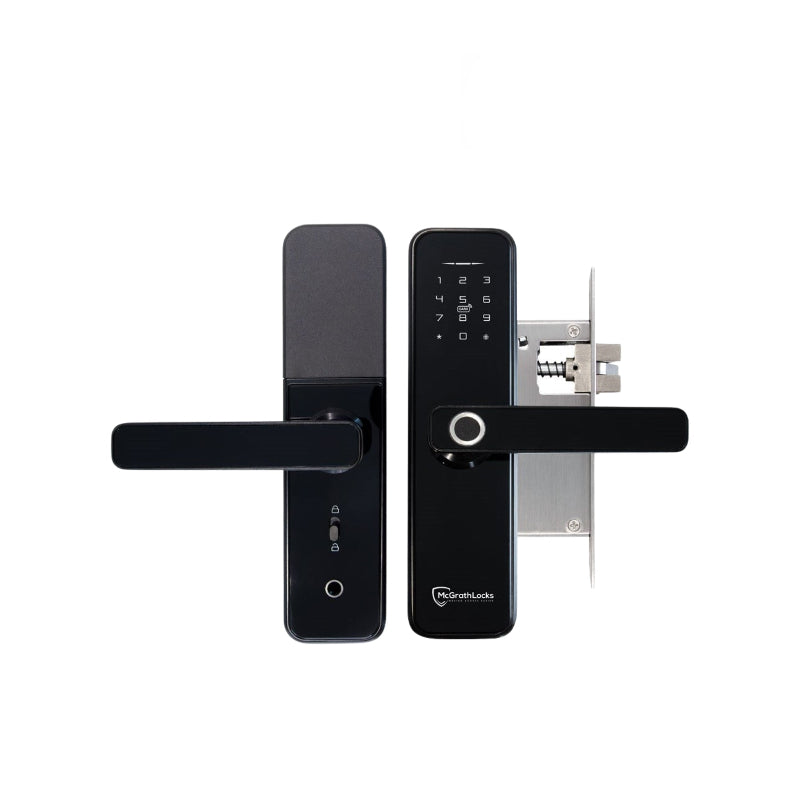

McGrath NX5 Digital Lock, Black Finish with Euro Style 60mm Backset Mortice Lock

The NX5 by McGrath Locks is a stylish and versatile 5-in-1 digital door lock ideal for homes, offices, and businesses. Designed with a larger lock body, it’s perfect for retrofitting doors that may have existing holes. Manage access easily via the powerful TTLock App, which supports PIN codes, RFID credentials, fingerprint recognition, Bluetooth eKeys, and mechanical key override. With the addition of a McGrath Locks Wi-Fi gateway, you can remotely unlock the NX5 from anywhere worldwide.

The lock comes with either an adjustable tubular latch or a European mortice lock, suits standard stile doors with thicknesses from 38 to 54 mm, and features field-changeable handing for simple installation. Available in Black or Silver finishes.

Key Features:

• 5-in-1 Access: PIN code, RFID, fingerprint, Bluetooth eKeys, mechanical key

• TTLock App management: user enrolment, lock settings, audit trail

• Passage mode to keep door open

• Anti-peep code to protect passcode privacy

• Lockout after incorrect attempts

• Privacy lock feature restricts access to administrator only

• Reset button disable option for added security

• Low battery alerts via app and audible alarm

• Mechanical key override and USB-C emergency power supply

• Field-changeable handing

• Suits door thickness 38–54 mm

Technical Specifications:

• Brand: McGrath Locks

• Finish: Black or Silver

• IP Rating: IP65 (external handle only)

• Fire Rated: No

• Biometric Fingerprint Access: Yes

• Door Suitability: Standard stile doors

• Type of Latch: Mortice lock

• Assembly Form: With mortice lock

• Lock Case Dimensions (H x W x D): 255 x 65 x 21 mm

• Power Source: 4 x AA Alkaline Batteries (not included)
