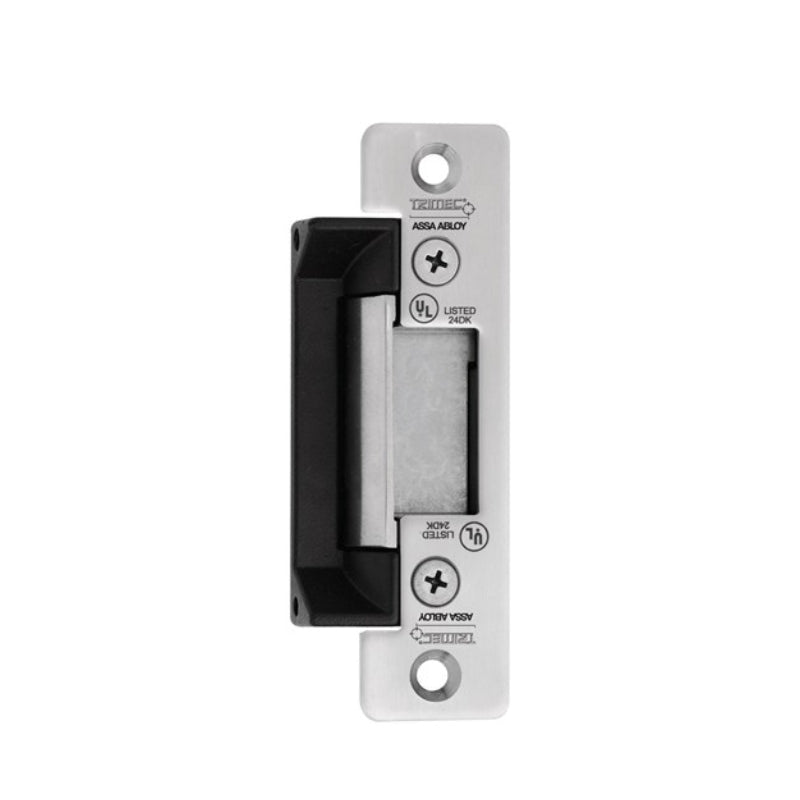

Trimec ES110 12VDC Electric Strike, Non-Monitored, Field Changeable Fail Safe, IP56 - 110111-070M

SKU: TRI110
Barcode: 9312341337606
$122.85
$122.85

Prices include GST, Shipping added at checkout- $11.90
Free pick up available at store

Description

The Trimec ES110 series electric strikes are designed for use with all access control systems.

Weather resistant with stainless steel faceplate.

Fail safe/fail secure is changeable on site.

Suitable for use on hinged doors to work with a extensive range of locks.

  • Holding force : 650kg.
  • Low current consumption: 250 mA @ 12V DC - 125mA @ 24V DC.
  • 250 mA @ 12V DC - 125mA @ 24V DC.
  • Power to lock/power to open.
  • Changeable on site.
  • Weather resistant IP56.
  • Stainless steel faceplate.
  • Stainless steel striker.
  • 3 stainless steel locking pins.
  • Solenoid can be continuously powered.
  • Optional extension lips.
  • Self adhesive installation template.
  • Holding strength of 650kg.
  • ES110 is suitable for 18 mm latch with a 3 mm door gap.

Technical Specifications

  • Brand    TRIMEC
  • Current    250 mA @ 12 Vdc to 125 mA @ 24 Vdc
  • Drilled for Lip Extension    Yes
  • Field Selectable Fail Safe/Fail Secure    Yes
  • Holding Strength in kg    650
  • IP Rating    IP56
  • Working Voltage    12 Vdc to 24 Vdc
  • Locking Mode    Fail Secure/Fail Safe
