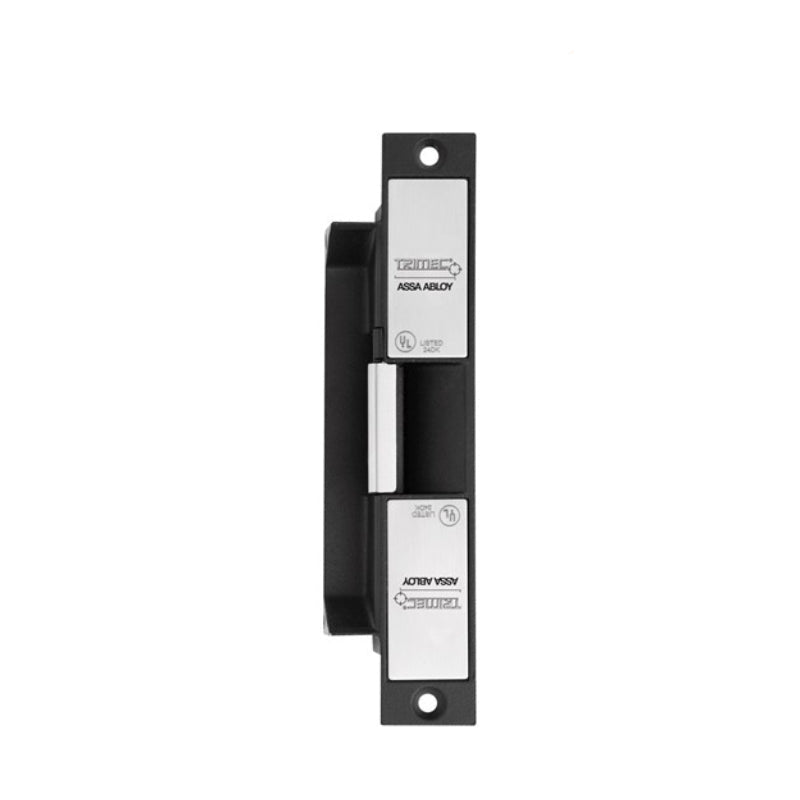

Trimec ES200 Series Electric Strike – Fire Rated, Fully Monitored Access Control

The Trimec ES200 Series Electric Strike is engineered for use with all access control systems, providing reliable security for hinged doors requiring fire and high-security protection. Designed for versatility, it features an on-site selectable fail secure or fail safe locking mode to fit your specific security needs.

With a robust stainless steel striker, three hardened locking pins, and a holding force of 850 kg, this electric strike ensures strong and dependable locking performance. The product is fire-rated for 4 hours and includes a deeper throat design for easier installation, accommodating standard 15 mm latch bolts with a 3 mm door gap.

Key Features:

• Compatible with all access control systems

• Field-selectable fail secure or fail safe operation

• Fire rated for up to 4 hours

• Stainless steel striker with 3 hardened locking pins

• Holding strength of 850 kg for superior security

• Low power consumption: max 175 mA @ 12 Vdc

• Suitable for hinged doors with fire or security requirements

• Deeper throat design for easier installation

• Power to open or power to lock, changeable on site

• Solenoid capable of continuous power

• Supplied with mounting kit and self-adhesive installation template

• Compact body depth of only 27 mm

• Drilled for lip extension

Technical Specifications:

• Brand: Trimec

• Current: 175 mA @ 12 Vdc

• Working Voltage: 12 Vdc

• Fire Rating: 4 hours

• Locking Mode: Fail Secure / Fail Safe (field selectable)

• Holding Force: 850 kg

• Body Depth: 27 mm

• Installation: Includes mounting kit and installation template
