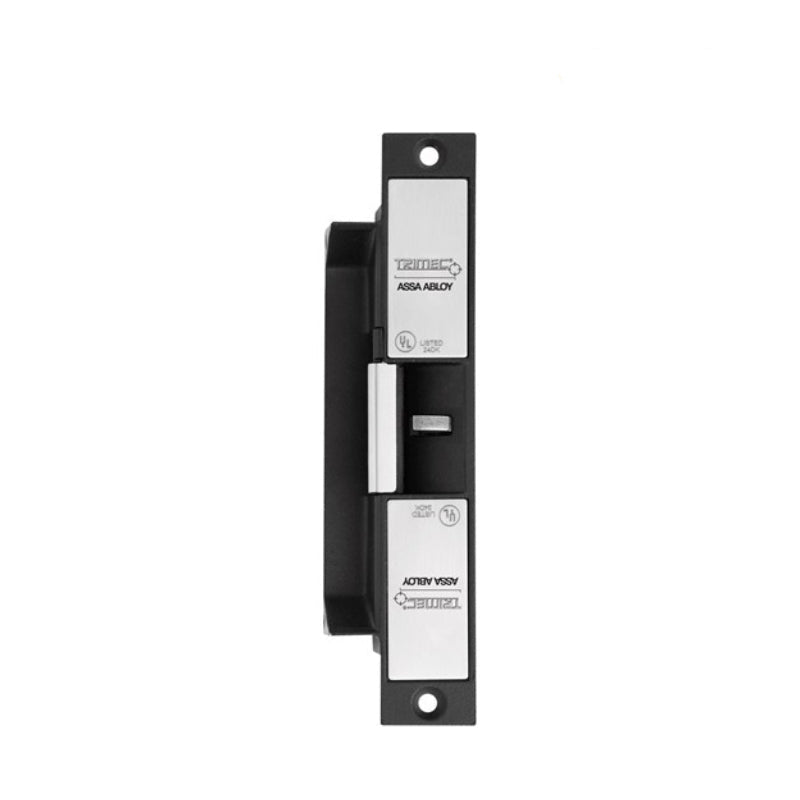

Trimec ES2000 Series Electric Strike – Monitored, Fire Rated, Secure Access Control

The Trimec ES2000 Series Electric Strike is a robust, fully monitored electric strike designed for use with all access control systems, ideal for high-security and fire-rated hinged doors. Featuring a stainless steel body and striker with three hardened locking pins, it offers a holding strength of 850 kg, making it suitable for secure areas requiring reliable performance.

This versatile electric strike supports on-site selectable fail secure or fail safe modes, ensuring flexibility for your security setup. It’s fire-rated for up to 4 hours, compliant with Australian government and SCEC standards, and designed with a deeper throat for accommodating a 15 mm latch bolt and a 3 mm door gap.

Key Features:

• Fully monitored latch and solenoid for enhanced security

• Fire rated to 4 hours for high safety compliance

• Stainless steel body and striker with 3 hardened locking pins

• Holding force of 850 kg for secure locking

• On-site selectable fail safe/fail secure mode

• Low current consumption: max 175 mA at 12 Vdc

• Suitable for 15 mm latch bolt with 3 mm door gap

• Drilled for lip extension with self-adhesive installation template

• Depth of body only 27 mm, with a deeper throat for easier installation

• Continuous solenoid power capability

• Australian government approved and SCEC endorsed for secure areas

Technical Specifications:

• Brand: Trimec

• Current: 175 mA @ 12 Vdc

• Working Voltage: 12 Vdc

• Holding Strength: 850 kg

• Fire Rating: 4 hours

• Fail Safe / Fail Secure: Field selectable

• Monitoring: Fully monitored latch and solenoid

• Drilled for Lip Extension: Yes

• Material: Stainless steel body and striker

• Body Depth: 27 mm
