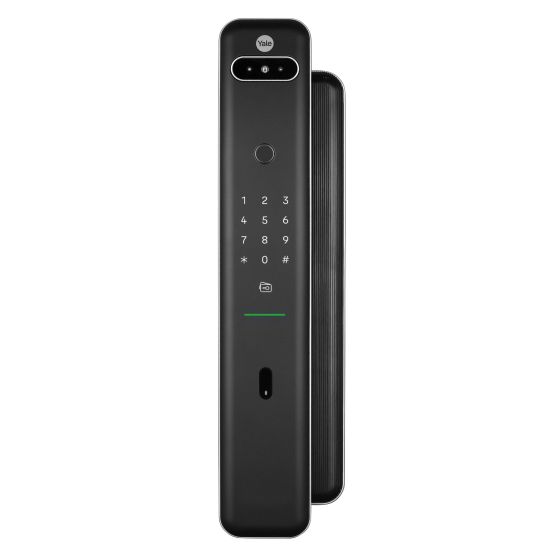

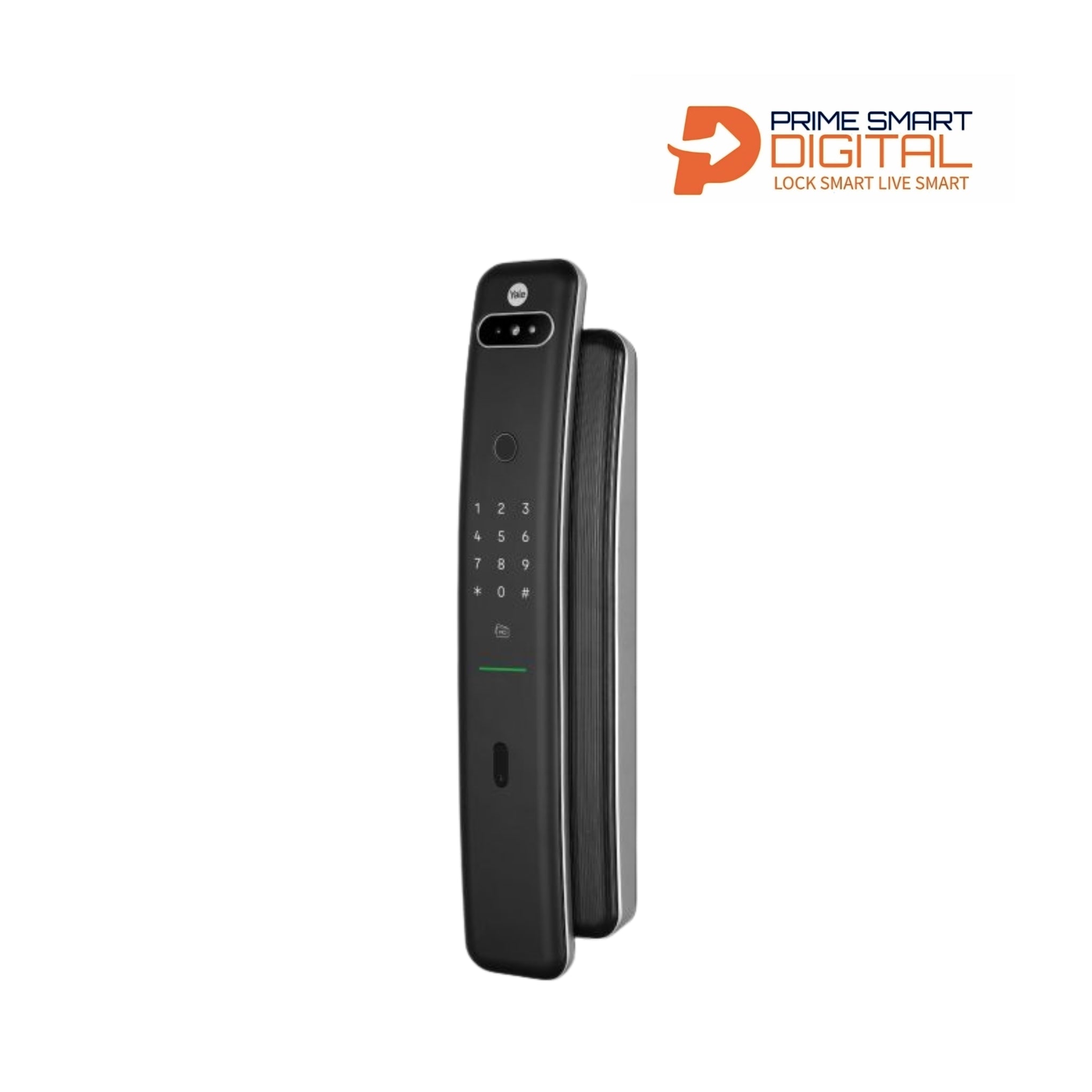

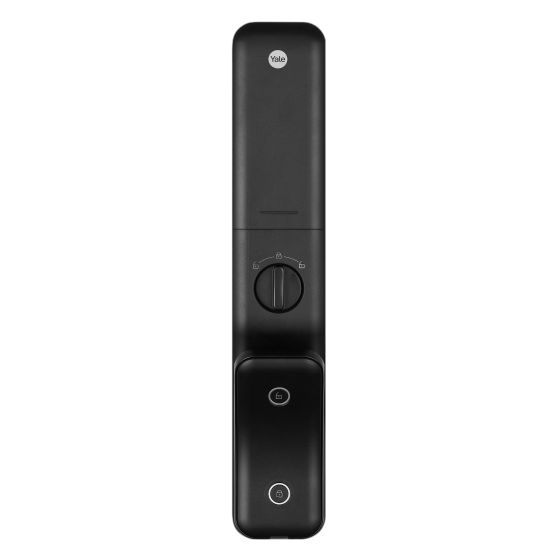

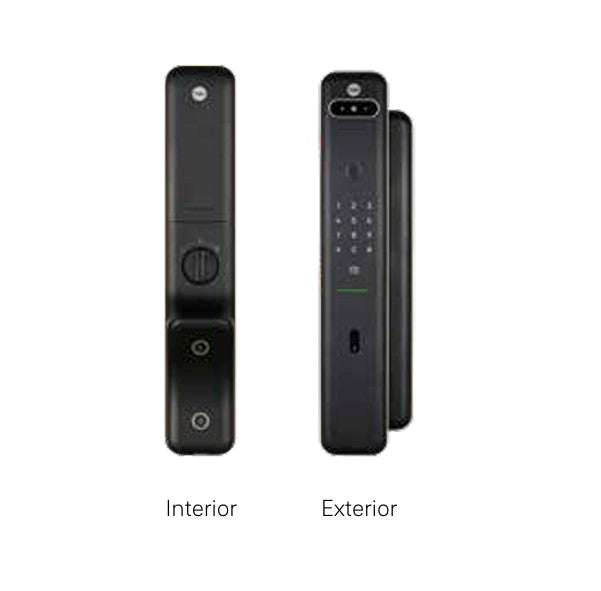

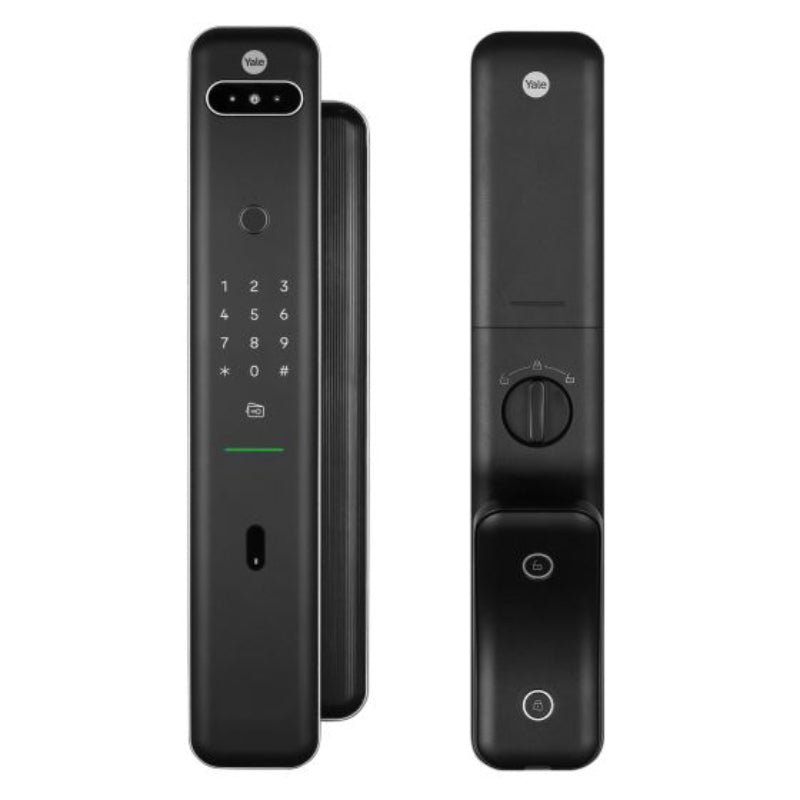

YALE LUNA PRO+ 60MM BACKSET NOVA GRAPHITE WITH YALE HOME MODULE NOVA GRAPHITE

YALE LUNA PRO+ 60MM BACKSET NOVA GRAPHITE WITH YALE HOME MODULE NOVA GRAPHITE

Features & Specifications

•  Create up to 100 Unique PIN codes
•  Create up to 100 facial recognition credentials
•  Create up to 50 fingerprints
•  Control through one APP with the YDM series Yale Home module (included)
•  Fake PIN code
•  Suitable for timber doors 35mm to 100mm thick
•  Mechanical key override
•  60mm backset mortice lock
•  Lithium ion battery
•  Available in Nova Graphite and Champagne Gold finishes
•  Type-C emergency power back up
•  Home automation integration capabilities with Yale Connect Plus Hub 2

Technical Specifications

•  Compliance-Regulatory Compliance Mark (RCM & R-NZ) for Australia and New
     Zealand
•  Lock Type- Mortice locks
•  Door Thickness- 35-100mm Timber door
   Backset-  60mm
•  Finish- Nova Graphite, Champagne Gold
•  RFID- 2 x Contactless Key Tags Included
•  Fingerprint -Yes, up to 50 registrations
   Power- Lithium ion battery
•  Battery Life on lock-Approximately 9-12 months depending on daily usage
•  Low Battery Warning -Yes
•  Volume Settings- Yes
•  Operating Temperature --25-70°C
•  Humidity - 0-95%
•  IP Rating- IP52*
•  Use- Entry doors. Not for use on doors where the internal escutcheon  is exposed to outside elements. Eg: Outdoor gate

Break in/ tamper alarm - Yes

  * IP52 rating: Protects against limited dust ingress and vertically dripping
water when tilted up to 15 degrees.
 Precautions:
 • Do not install in areas directly exposed to heavy rain or water jets.
 •  Avoid extreme temperature fluctuations or prolonged exposure to
high humidity, as IP52 doesn’t guarantee full waterproofing


Yale Luna Pro+ Brochure  ➡   DOWNLOAD
